Chapter 2 Basic Operations
Removing the Magazines

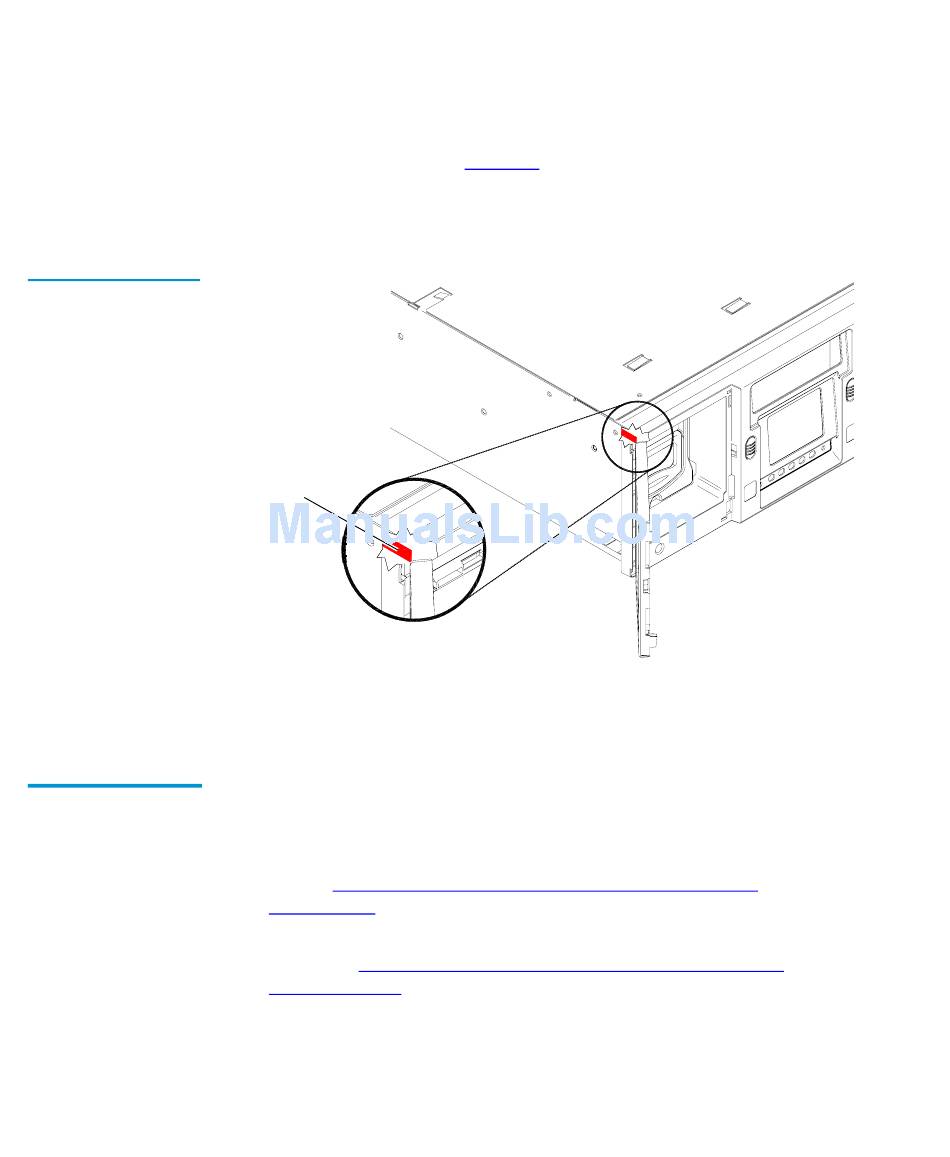

Figure 25 Magazine
Release Button
Removing a
Magazine from an
2
M2500
38
3 To remove the left magazine:
Using a slender object such as a pen, press and hold the magazine
a
release button (see
Grasp the handle at the front of the left magazine and slide it
b
forward and out of the library.
Magazine
release
button
4 To remove the right magazine, grasp the handle at the front of the
magazine and slide it forward and out of the library.
The method for removing the magazines differs depending on whether
the M2500 library is powered up or down:
• To remove a magazine from the M2500 library when it is powered
up, see Removing a Magazine when the M2500 Library is
Powered Up.
• To remove a magazine from the M2500 library when it is powered
down, see Removing a Magazine when the M2500 Library is
Powered Down.
Tandberg Data M-Series User's Guide
figure 25).
