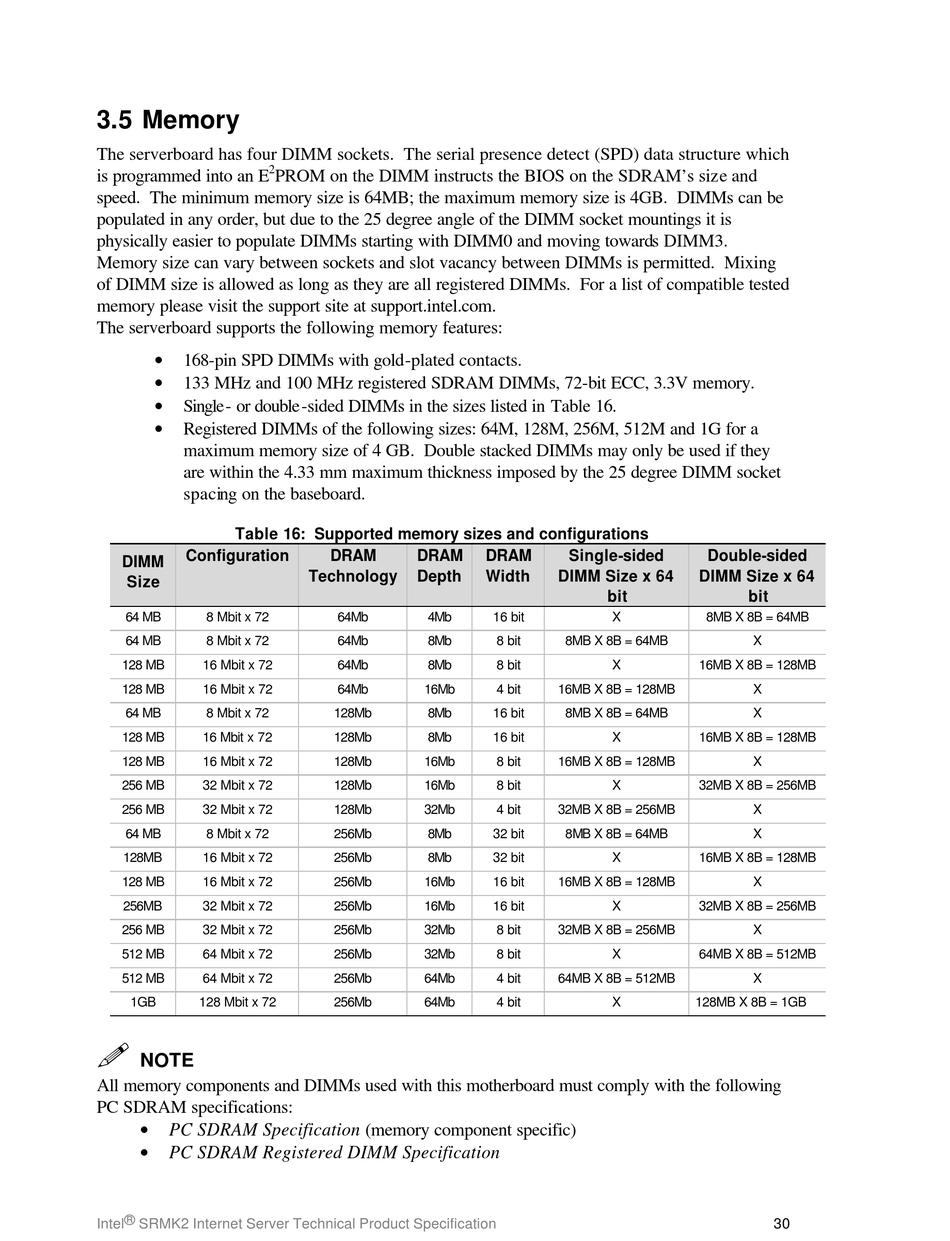

3.5 Memory

The serverboard has four DIMM sockets. The serial presence detect (SPD) data structure which
2
is programmed into an E PROM on the DIMM instructs the BIOS on the SDRAM's size and
speed. The minimum memory size is 64MB; the maximum memory size is 4GB. DIMMs can be
populated in any order, but due to the 25 degree angle of the DIMM socket mountings it is
physically easier to populate DIMMs starting with DIMM0 and moving towards DIMM3.
Memory size can vary between sockets and slot vacancy between DIMMs is permitted. Mixing
of DIMM size is allowed as long as they are all registered DIMMs. For a list of compatible tested
memory please visit the support site at support.intel.com.
The serverboard supports the following memory features:
168-pin SPD DIMMs with gold-plated contacts.
133 MHz and 100 MHz registered SDRAM DIMMs, 72-bit ECC, 3.3V memory.
Single- or double-sided DIMMs in the sizes listed in Table 16.
Registered DIMMs of the following sizes: 64M, 128M, 256M, 512M and 1G for a
maximum memory size of 4 GB. Double stacked DIMMs may only be used if they
are within the 4.33 mm maximum thickness imposed by the 25 degree DIMM socket
spacing on the baseboard.
Table 16: Supported memory sizes and configurations
Configuration
DIMM
Size
64 MB 8 Mbit x 72
64 MB 8 Mbit x 72
128 MB 16 Mbit x 72
128 MB 16 Mbit x 72
64 MB 8 Mbit x 72
128 MB 16 Mbit x 72
128 MB 16 Mbit x 72
256 MB 32 Mbit x 72
256 MB 32 Mbit x 72
64 MB 8 Mbit x 72
128MB 16 Mbit x 72
128 MB 16 Mbit x 72
256MB 32 Mbit x 72
256 MB 32 Mbit x 72
512 MB 64 Mbit x 72
512 MB 64 Mbit x 72
1GB 128 Mbit x 72
!
NOTE
All memory components and DIMMs used with this motherboard must comply with the following
PC SDRAM specifications:
PC SDRAM Specification (memory component specific)
PC SDRAM Registered DIMM Specification
Intel ® SRMK2 Internet Server Technical Product Specification
DRAM DRAM DRAM
Technology Depth Width
64Mb 4Mb
64Mb 8Mb
64Mb 8Mb
64Mb 16Mb
128Mb 8Mb
128Mb 8Mb
128Mb 16Mb
128Mb 16Mb
128Mb 32Mb
256Mb 8Mb
256Mb 8Mb
256Mb 16Mb
256Mb 16Mb
256Mb 32Mb
256Mb 32Mb
256Mb 64Mb
256Mb 64Mb
Single-sided
DIMM Size x 64
bit
16 bit X
8 bit 8MB X 8B = 64MB
8 bit X
4 bit 16MB X 8B = 128MB
16 bit 8MB X 8B = 64MB
16 bit X
8 bit 16MB X 8B = 128MB
8 bit X
4 bit 32MB X 8B = 256MB
32 bit 8MB X 8B = 64MB
32 bit X
16 bit 16MB X 8B = 128MB
16 bit X
8 bit 32MB X 8B = 256MB
8 bit X
4 bit 64MB X 8B = 512MB
4 bit X
Double-sided
DIMM Size x 64
bit
8MB X 8B = 64MB
X
16MB X 8B = 128MB
X
X
16MB X 8B = 128MB
X
32MB X 8B = 256MB
X
X
16MB X 8B = 128MB
X
32MB X 8B = 256MB
X
64MB X 8B = 512MB
X
128MB X 8B = 1GB
