2.2.1.4 DC Connector Requirements

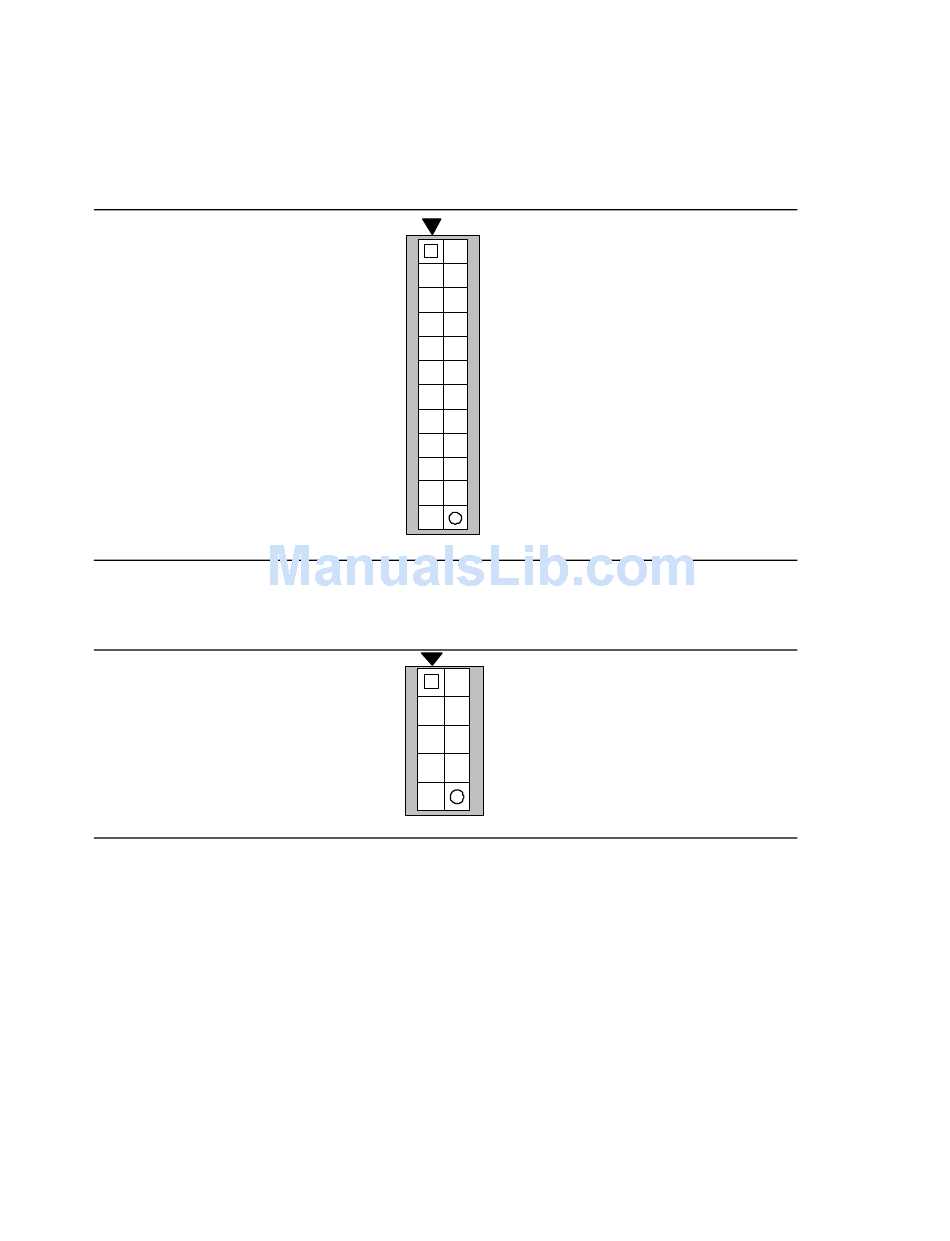

Figure 6 and Figure 7 show the connector pinouts for the serverboard power connectors. These
mate with the power supply connectors at connector J27 and J39.
Intel ® SRMK2 Internet Server Technical Product Specification
1 13
Ground
Ground
Ground
Ground
+3.3V
+3.3V
+3.3V
+3.3V
Ground
Ground
+5VSB
Ground
12 24
Figure 6: DC connector pinout (J27)
1 6
HECALERT#
Ground
Ground Sense
PWR_ON#
-12V
5 10
Figure 7: DC connector pinout (J39)
VRM Input Voltage
VRM Input Voltage
VRM Input Voltage
VRM Input Voltage
Ground
Ground
Ground
Ground
+5V
+5V
Ground
+12V
SMB_Data
SMB_CLK
+3.3V Sense
PWRGOOD
+5V Sense
