Jumper Blocks

Figure 18 shows the locations of the password override, BIOS Setup configuration and
whitebox/Appliance jumpers.
CAUTION
Do not move a jumper with the power on. Always turn off the power and unplug the power cord from the
computer before changing jumper settings.
A
B
C

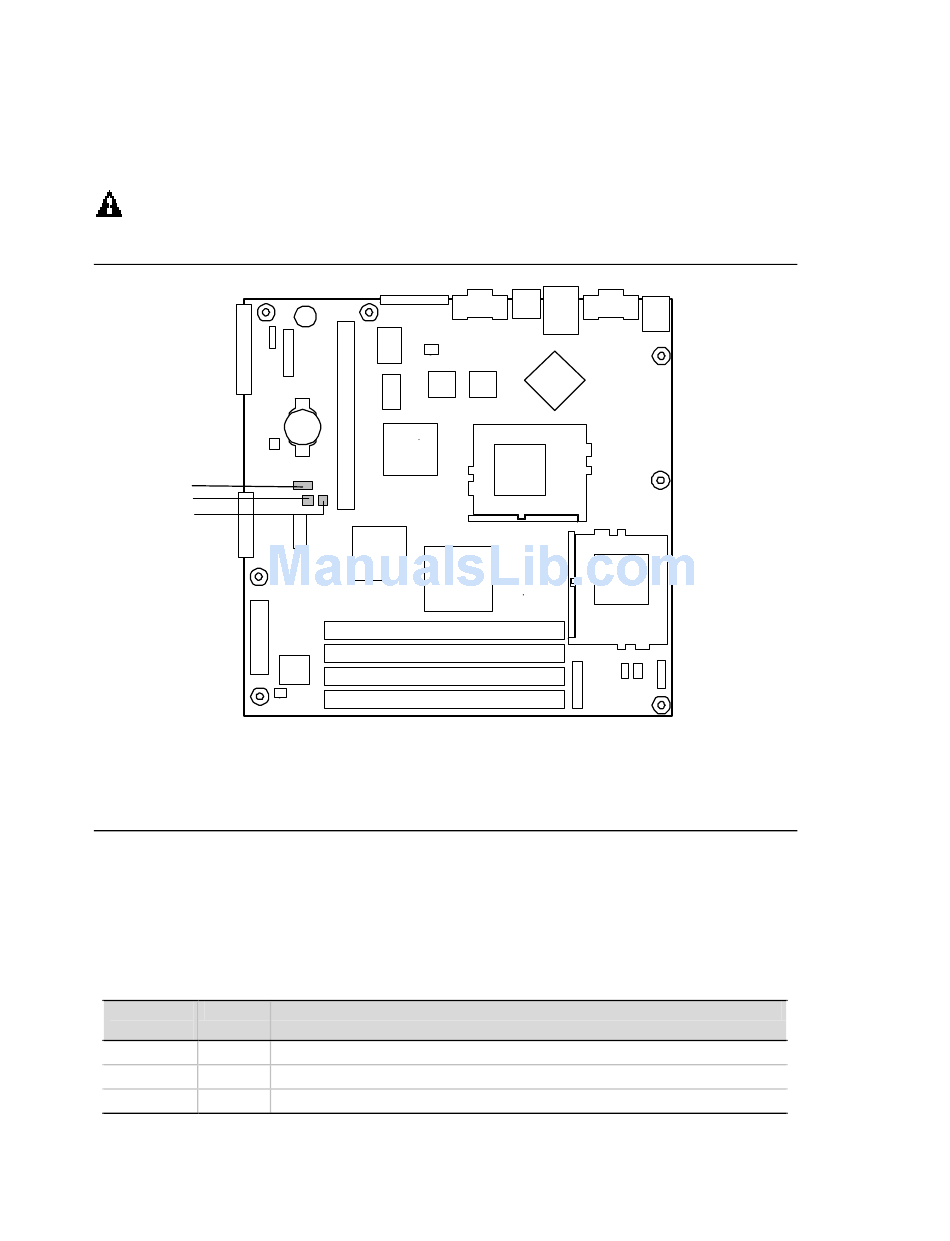

Figure 18: BIOS Setup configuration and password override jumpers
The table below shows the jumper settings for the BIOS Setup jumper (J19). This jumper is
normally set with a jumper covering pins 1&2. BIOS recovery is performed by removing the
jumper (you need to have a BIOS diskette in the floppy disk drive) or you can enter the BIOS by
using the Configuration jumper setting by moving the jumper to pins 2&3.
Function / Jumper Configuration
Mode
Normal 1-2
Configure 2-3
Recovery None
Intel ® SRMK2 Internet Server Technical Product Specification
A BIOS Setup jumper
B Whitebox / Appliance jumper
C Clear Password jumper
Table 37: BIOS Setup jumper (J19)
The BIOS uses current configuration information and passwords for booting.
After the POST runs, setup runs automatically. The Maintenance menu is displayed.
The BIOS attempts to recover the BIOS configuration. A recovery diskette is required.
