System Cable Drawings

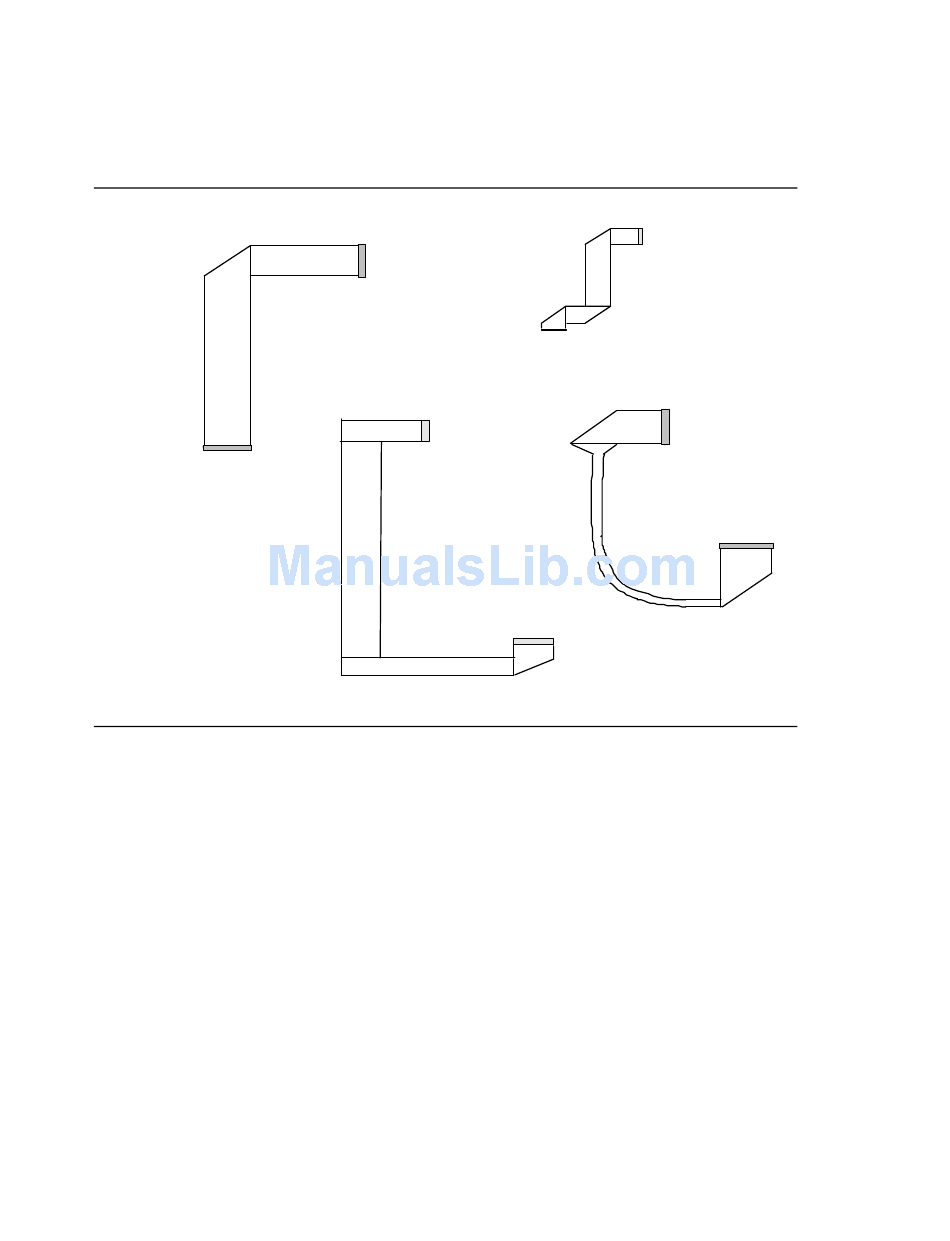

Figure 9 shows drawings of all the internal cables within the system and the locations of their
folds. Where applicable, the darker line indicates pin 1.
Front panel
SCSI hard
drives
Slim-line CD-ROM drive
Slim-line diskette
(optional)
drive
Figure 9: Internal cables
Intel ® SRMK2 Internet Server Technical Product Specification
