Simrad SH90

Dual 2

78
The Dual 2 mode is very similar to the Dual 1 mode previously
described, but the "two sonars" are presented next to each other.
All settings can still be set individually for each of the two
presentations.

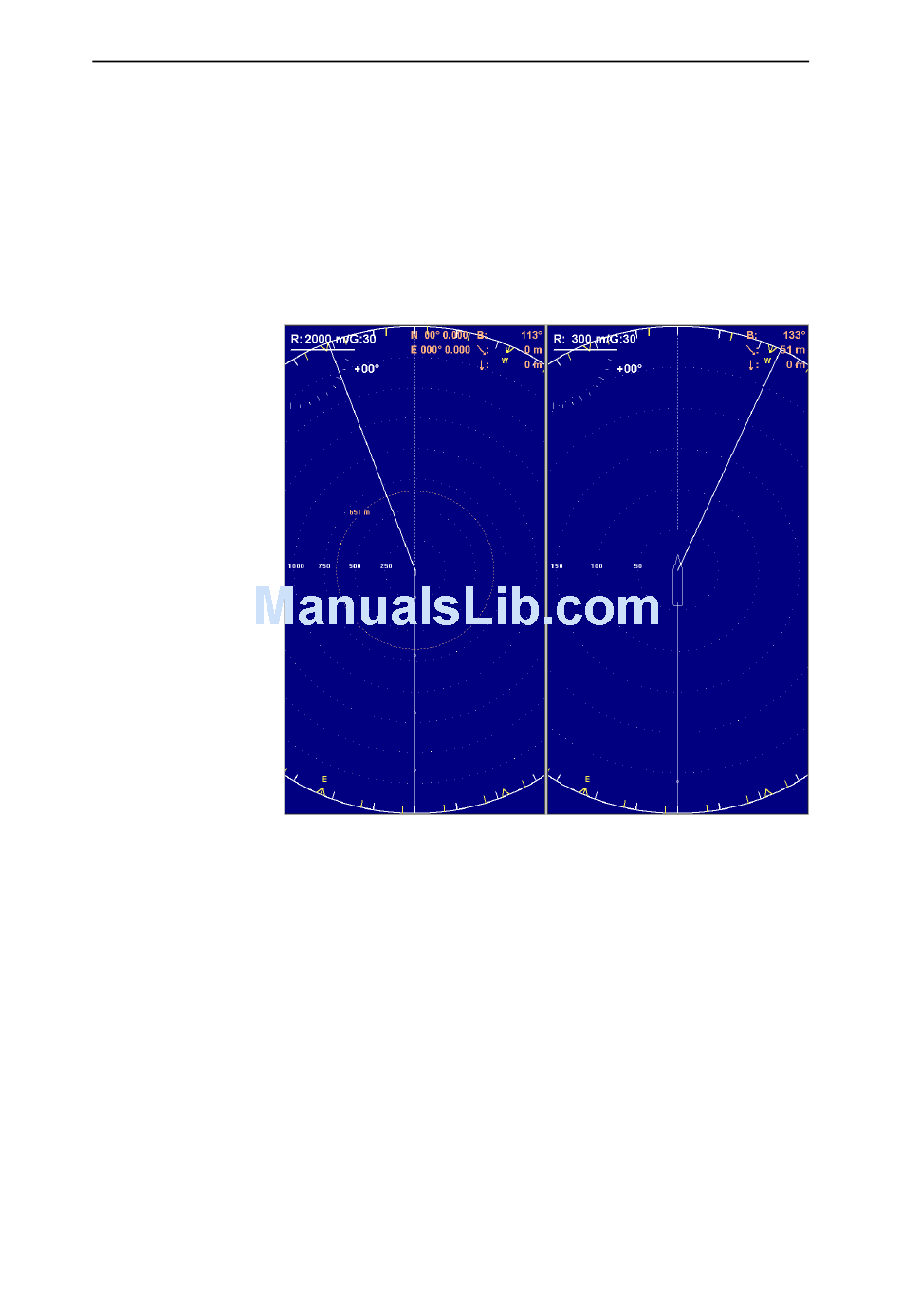

Figure 29 'Dual 2' display mode
323775/A
