Track Window; Transducer - Simrad SH90 - REFERENCE MANUAL REV A Reference Manual

Simrad SH90
168

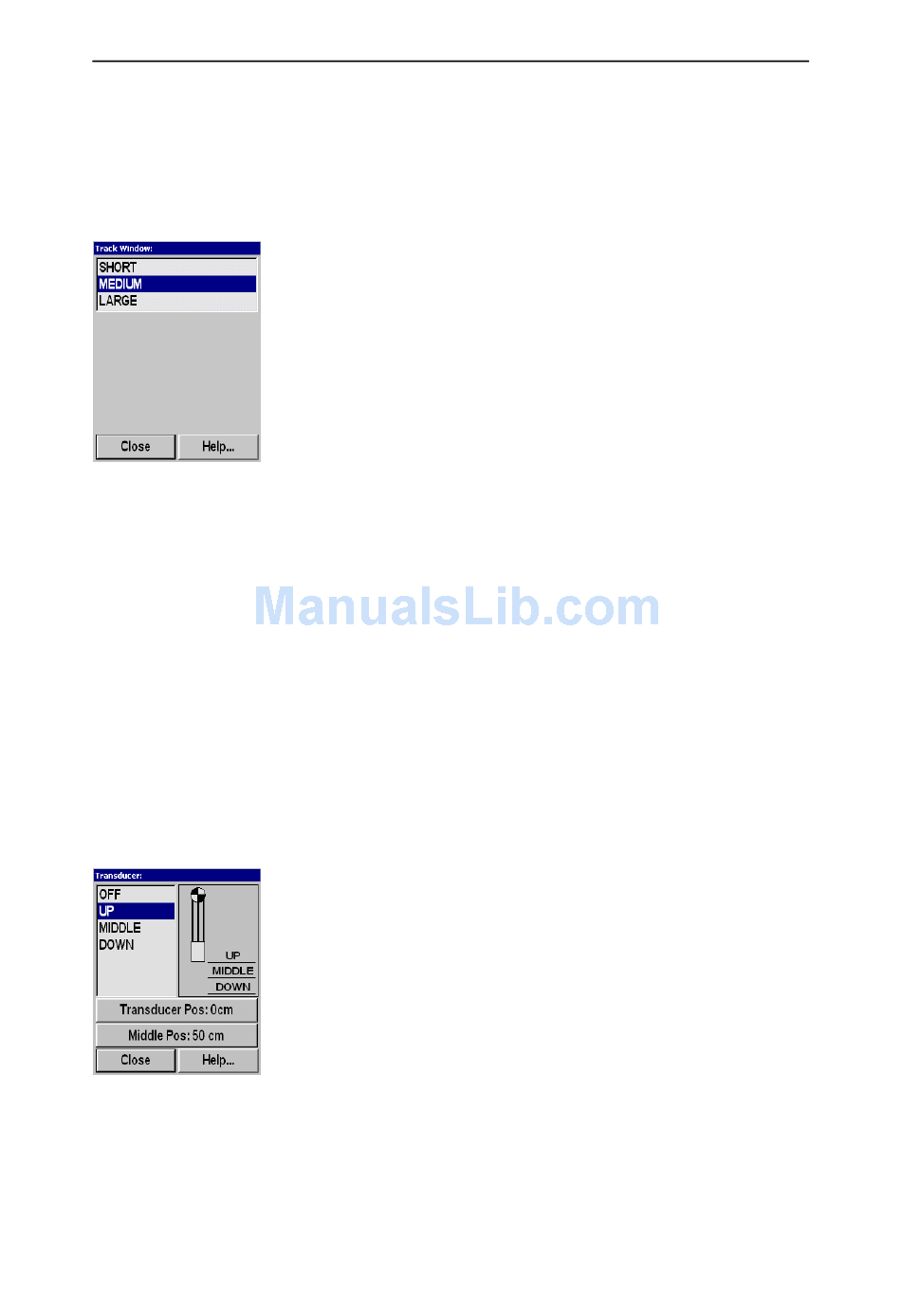

Track Window

Dialog description
The parameter dialog opens when you click the
Track Window
button on the
Track Window
This parameter dialog enables you to adjust the track window
size. A larger track window will enable the system to track a
large target more easily, but the system will be more susceptible
to background noise. Smaller targets may be ignored if there is
a lot of noise in the area, as the system will track the strongest
echo within the track window.
Track Window dialog options
• : Click to use a small track window.
Short
• : Click to use a medium sized track window.
Medium
• : Click to use a large track window.
Large
• : Click to close the parameter dialog.
Close
• : Click to access the on-line help.
Help
Related topics
• Setup menu on page 98

Transducer

Dialog description
The parameter dialog opens when you click the
Transducer
button in the
Transducer
The transducer position is normally selected from the Operating
Panel, and in addition to the LED indicators on the panel, the
transducer position is shown in the
buttons in this parameter dialog correspond to their respective
buttons on the Operating Panel, and allows you to control the
transducer position by means of the sonar's menu system.
Transducer dialog options
• : Click to switch off the sonar system.
Off
• : Click to retract the transducer to its upper position.
Up
• : Click to position the transducer in its middle position.
Middle
This position is defined by means of the
menu.
Setup
parameter dialog.
Status
parameter dialog. The
Status
Middle Pos
button.
323775/A
