Wind Direction dialog options
•
+ (plus): Click to increase the wind direction.
•
– (minus): Click to decrease wind direction.
•
: Click to enable manual setting of the wind direction.
Manual
•
: Click to enable automatic setting of the wind direction.
Auto
The information must then be provided from an external
sensor connected to the sonar.
•
: Click to close the parameter dialog.
Close
•
: Click to access the on-line help.
Help
Related topics
•
Setup menu on page 98
Zoom
Dialog description
The
parameter dialog opens when you click the
Zoom
button in the
VerticalView
The zoom function is used to zoom in on the vertical view around
the trawl symbol or the bottom. To zoom in on the bottom, an
external echo sounder must be connected to the sonar.

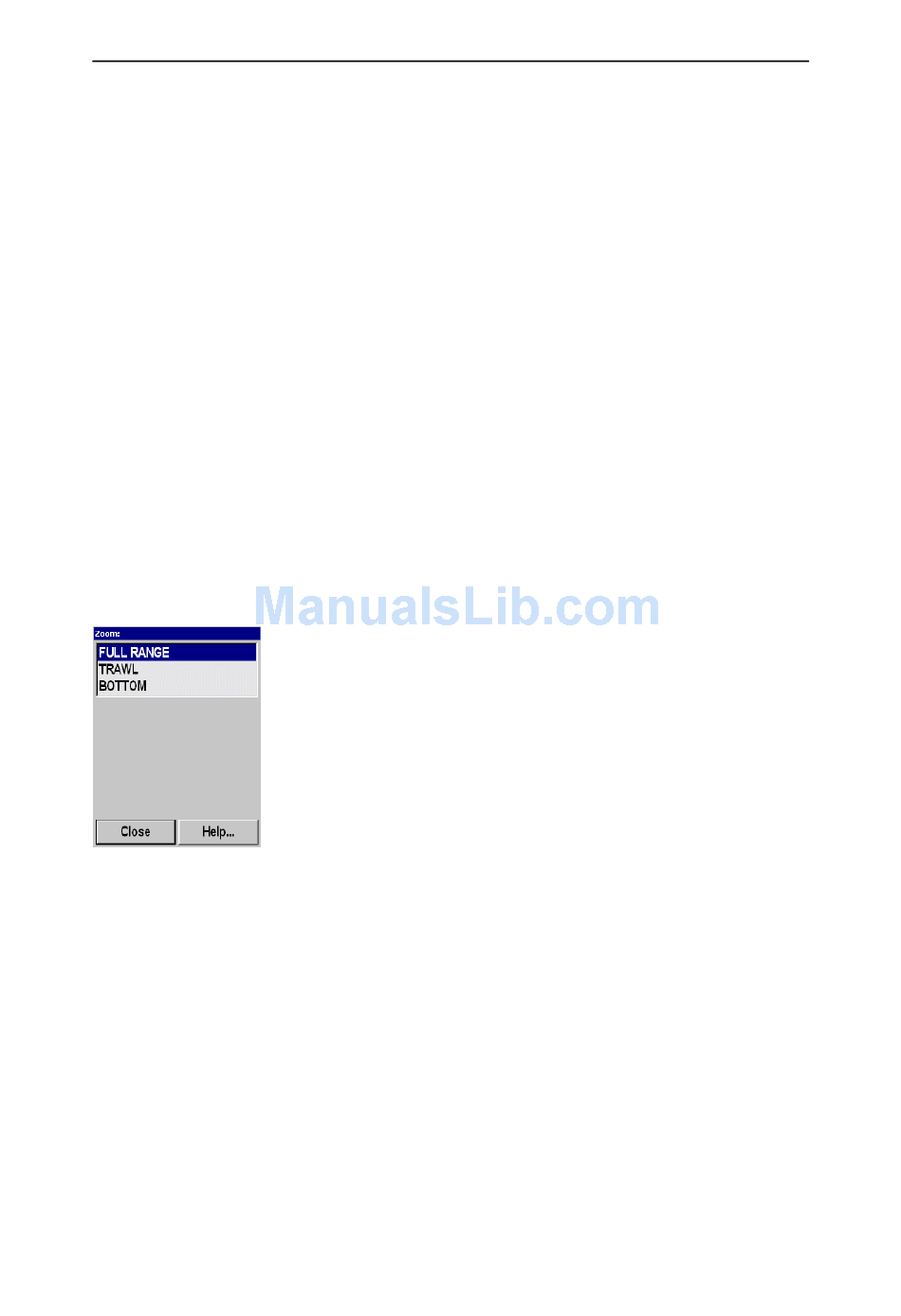

Zoom dialog options
•
: Click to use the full range in the vertical
Full Range
presentation.
•
: Click to zoom in on the trawl.
Trawl
•
: Click to zoom in on the bottom.
Bottom
•
: Click to close the parameter dialog.
Close
•
: Click to access the on-line help.
Help
Related topics
•
VerticalView menu on page 111
menu.
Parameters
Zoom
175
