Bow up

323775/A
When Bow up mode is selected, the vessel symbol is stationary on
the screen with the bow pointing upwards. The echo presentation
covers 360 degrees around the vessel, and all echoes are updated
for every ping. The distance from the vessel symbol to the outer
echo ring is equal to the selected range. The movement of the
echoes across the screen are controlled by a combination of the
vessel's course and speed and the target's own movements.

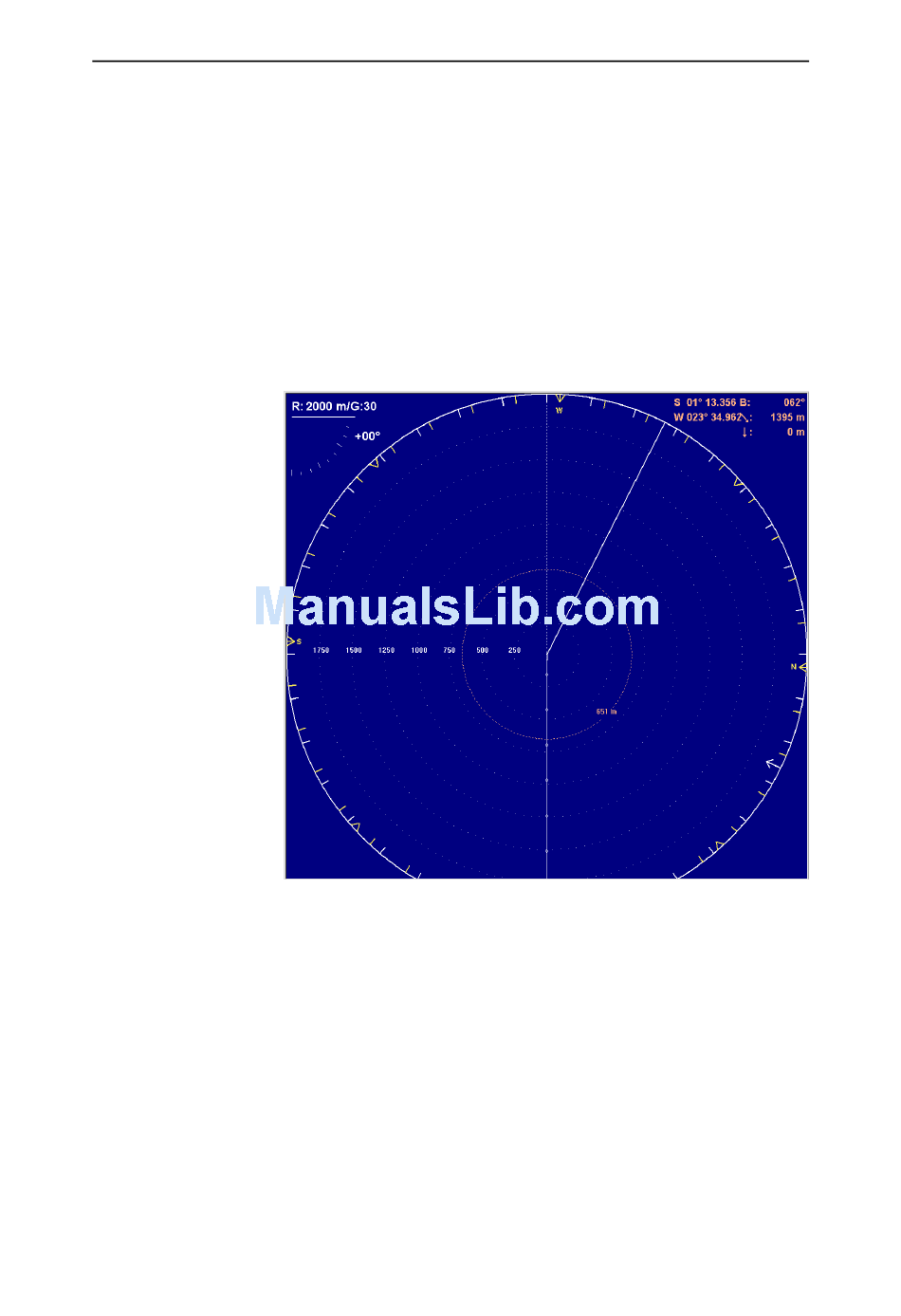

Figure 20 'Bow up' display mode
