323775/A

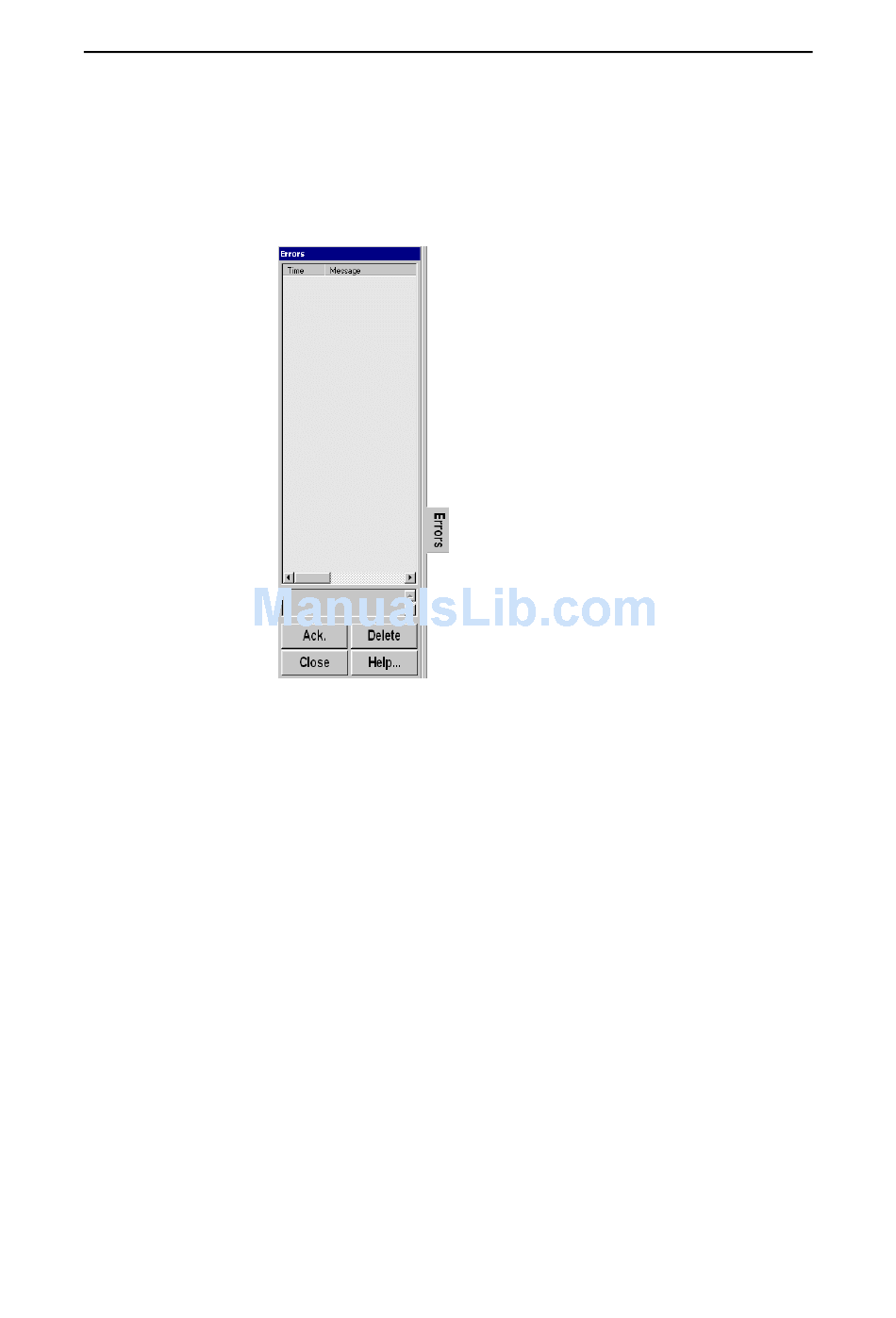

Errors menu
Menu description
The
menu is activated from
Errors
the
button in the
Errors
(► Message Bar on page 141)
The menu displays the error messages
issued by the sonar.
Each message is identified with time
of issue and a heading. Additional
information is found in the small text
field below the message list. The top
of the message list with the most recent
messages is always displayed when
the dialog is opened. Acknowledged
messages are displayed in grey. Use the
cursor and select individual messages
with the
button on the Operating
Select
Panel. For more information, see
'Cursor' field on page 85 and Message
Bar on page 141.
Menu buttons
•
: Press this button to
Ack(knowledge)
acknowledge the selected message
•
: Press this button to delete the
Delete
selected message.
•
: Click this button to close the
Close
menu.
•
: Click to open the on-line help
Help
system.
Menu descriptions
.
Message Bar
117
