Menu buttons
• : Click this button to move the ship symbol to
Ship to centre
the centre of the view.
• : Click this button to select the scale of the horizontal
Scale
presentation. 100% is the default scale. (► Scale on page 155)
• : This button is used to show the movement
Target Track
history of a selected target. The history is displayed as a line
after the target symbol. Straight line segments are drawn
between each position fix, and minute markers may be added
along the line. (► Target Track on page 164)

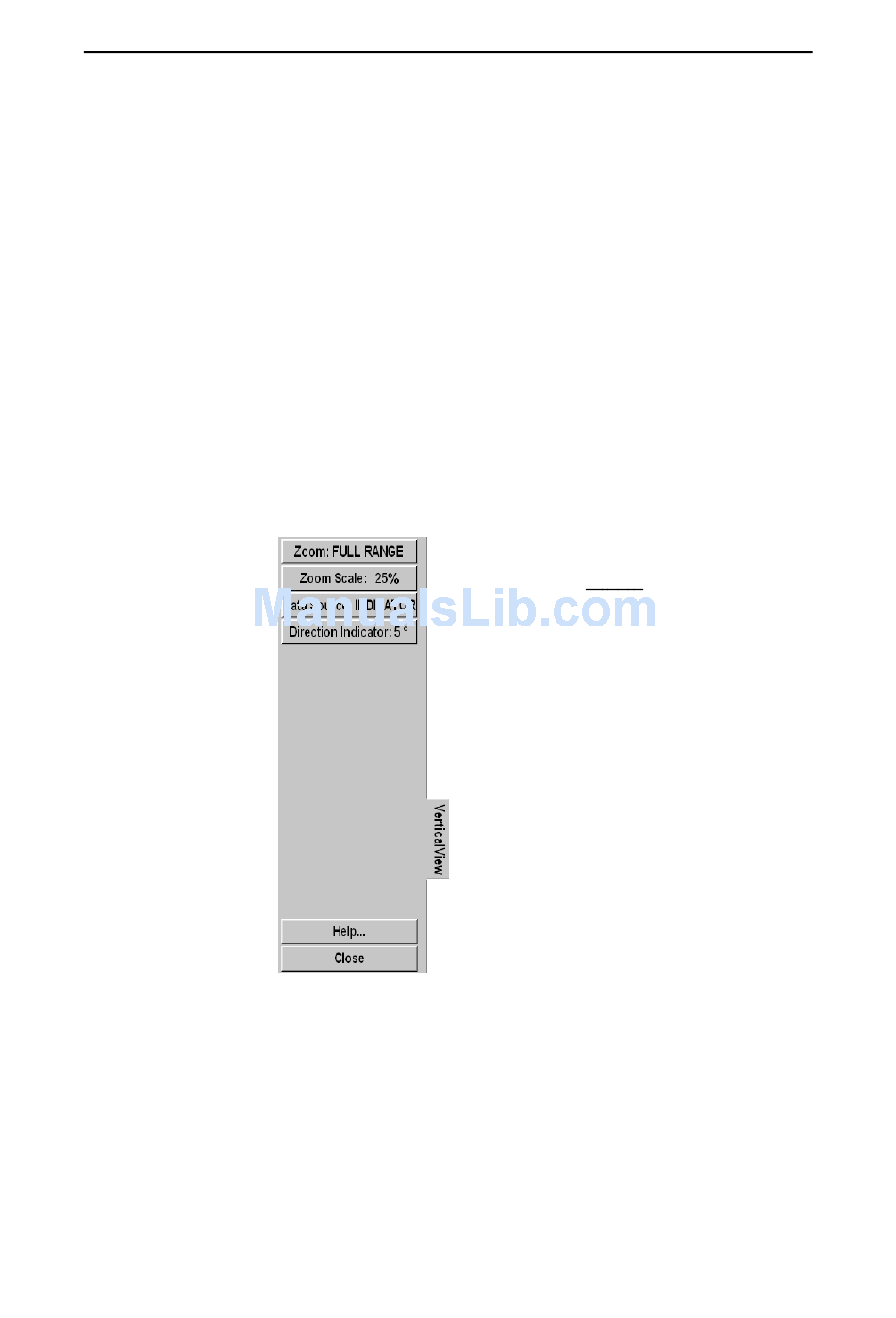

VerticalView menu

Menu description
Menu buttons
• : Click this button to zoom in on the vertical view
Zoom
around the trawl symbol or the bottom. To zoom in on the
bottom, an external echo sounder must be connected to the
sonar. (► Zoom on page 175)
• : Use this button to define the zoom scale around
Zoom Scale
the Trawl symbol or the bottom. (► Zoom Scale on page 176)
The menu is activated by
VerticalView
pressing the button on the Operating
View
Panel (or the middle mouse button)
while positioning the cursor in any of the
vertical views, and then selecting
in the pop-up.
menu View
This menu provides control of selected
parameters related to the current data
displayed in the vertical view. Note that
the
Direction Indicator
when is selected in the
Indicator
parameter dialog.
Source
• The button closes this menu.
Close
• The button opens the on-line
Help
help.
Menu descriptions
View
is only available
Data
