Simrad SH90
OPERATING PANEL
80
This chapter describes the Simrad SH90 Operating Panel.
The frequently used functions are directly accessible by the
designated control buttons on the Operating Panel, and may
enter operational commands directly. The buttons are grouped in
fields according to their purpose. Most sonar functions are also
accessible and activated using the menu system on the display
and the trackball and

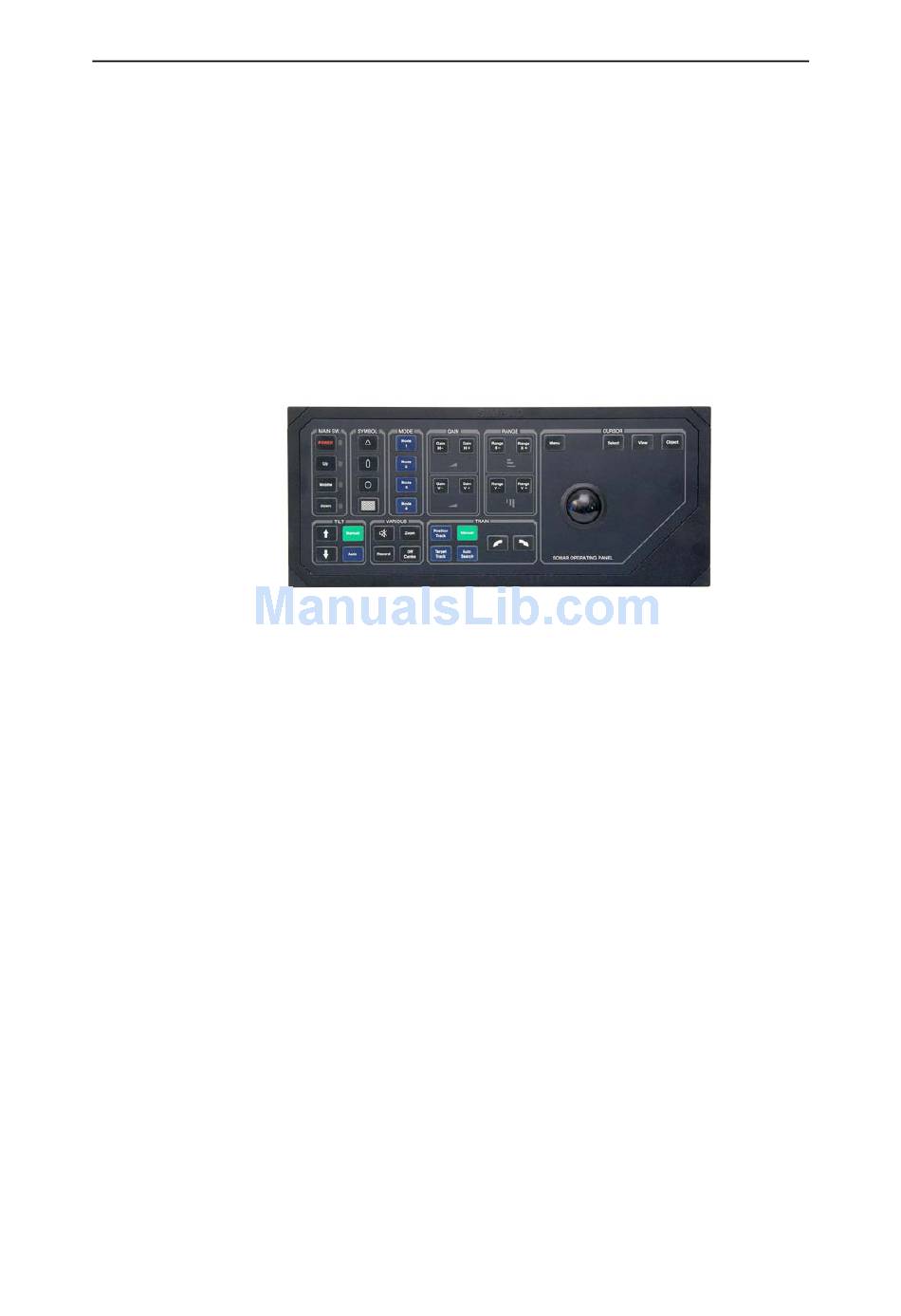

Figure 31
Operating Panel
Topics
•
'Main switch' field on page 81
•
'Symbol' field on page 82
•
'Mode' field on page 84
•
'Gain' field on page 84
•
'Range' field on page 85
•
'Cursor' field on page 85
•
'Train' field on page 87
•
'Tilt' field on page 88
•
'Various' field on page 90
button on the Operating Panel.
Select
323775/A
