Simrad SH90 - DATASHEET REV A Datasheet

High frequency and high resolution sonar

Hide thumbs Also See for SH90 - DATASHEET REV A:

Download this manual See also: Reference Manual, Operator's Manual

Simrad SH90

High frequency and high resolution sonar

T E C H N O L O G Y

F O R

S U S T A I N A B L E

360° Omnidirectional sonar

114 kHz operational frequency

Chirp FM transmission

Large dynamic range

Dual beam operation

Store and recall sonar data

Define your own user settings

www.simrad.com

F I S H E R I E S

90° Vertical tip

Narrow beams

High definition

Stabilized beams

Easy operation

Need help?

Do you have a question about the SH90 - DATASHEET REV A and is the answer not in the manual?

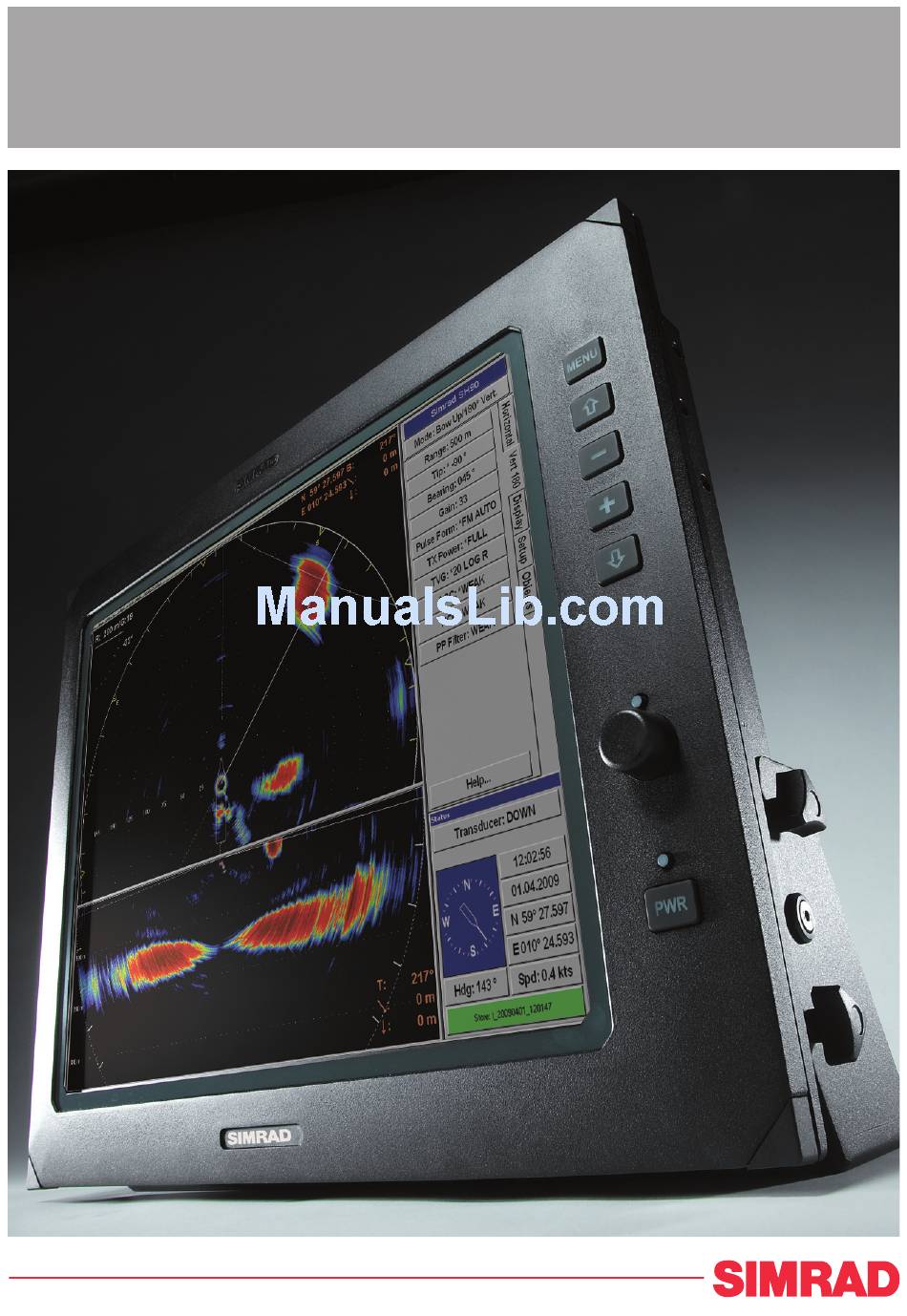

Page 1 Simrad SH90 High frequency and high resolution sonar 360° Omnidirectional sonar 90° Vertical tip 114 kHz operational frequency Narrow beams Chirp FM transmission Large dynamic range High definition Stabilized beams Dual beam operation Easy operation Store and recall sonar data Define your own user settings www.simrad.com...
Page 2 SIMRAD SH90 Simrad high definition sonars detect weak and scattered targets under difficult conditions The catching machine System diagram (A) Processor Unit The Simrad SH90 is a perfect catching machine. It is ideal for (B) Colour display mackerel, tuna, and all fish located...
Page 3 The school is just lifting from the bottom, and it has a good density. This can be easily investigated due to the extreme resolution found in the Simrad SH90 sonar.
Page 4 Hull Unit • Frequency: 114 kHz For additional and more detailed • Range scale: 50 to 2000 m specifications, see the Simrad SH90 Product • Tilt: +10° to -60° in 1° steps description. The document can be downloaded from www.simrad.com.
