OPERATIONAL PROCEDURES

Power on/off procedures

38
This chapter presents how to perform the most common
procedures on the SH90 sonar. Note that the power on/off
procedures have been previously explained.
Topics
• Power on/off procedures on page 38
• Menu procedures on page 40
• Gain adjustment procedures on page 41
• Mode procedures on page 43
• Markers and symbols procedures on page 45
• Storage procedures on page 48
• Automatic search and tracking procedures on page 54
• User setting procedures on page 57
• Installation of options on page 58
• Software procedures on page 60
These procedures explain how to switch the sonar system on and
off. The operation is made using the buttons on the operating
panel.

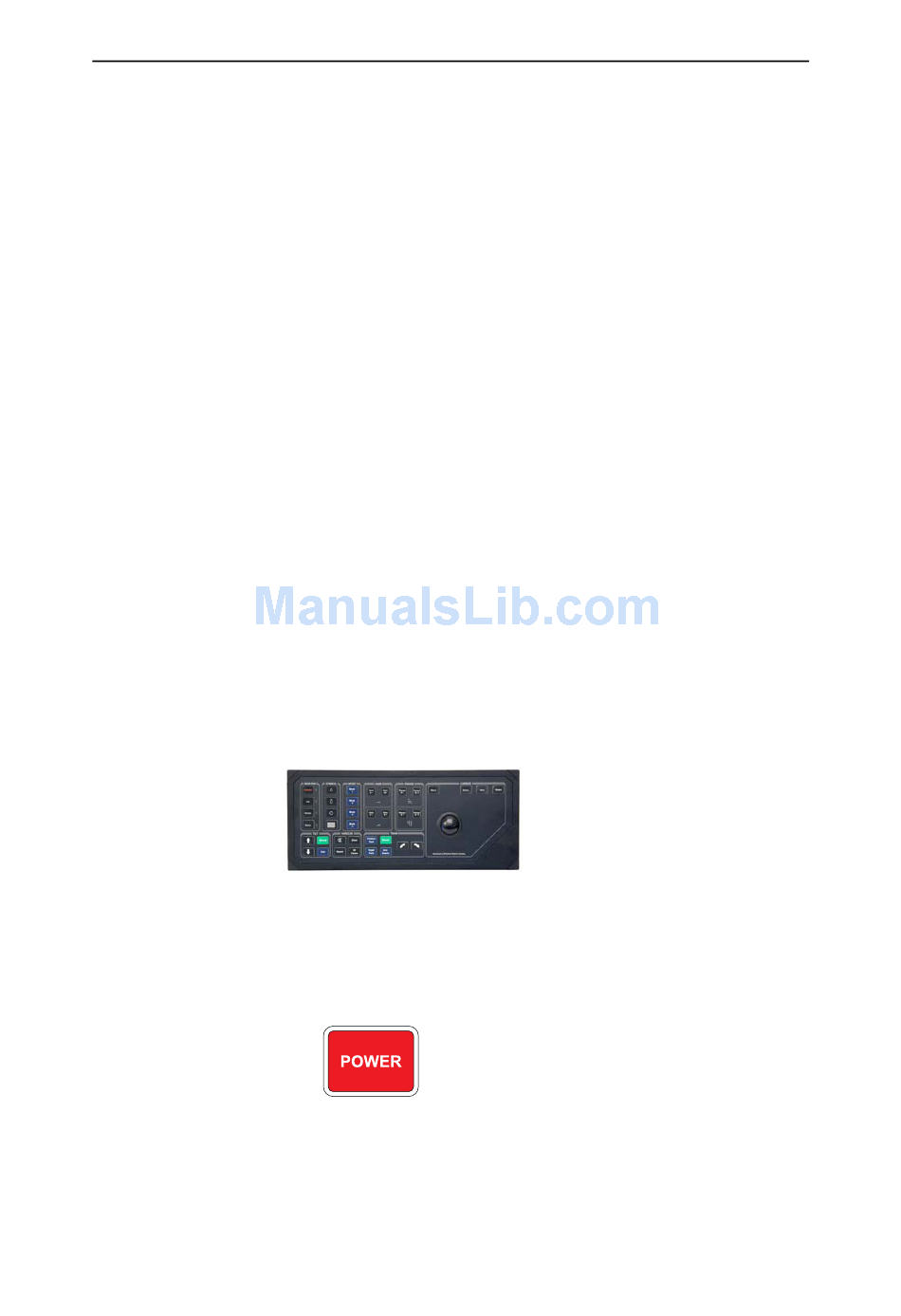

Figure 17 Operating Panel

How to switch on the sonar

Press the button on the colour display monitor.
1
Power
Press the button on the Operating Panel, and keep it
2
Power
depressed for approximately two seconds.
• The green lamp on the right side of the button will flash
to indicated that the power has been switched on, and that
the computer is starting up.
• After a short period you will see the sonar picture on
the display.
