Automatic search and tracking procedures

54
The SH90 sonar provides you with two automatic search
programs, horizontal and vertical. Both are initiated from the
Operating Unit

How to start the horizontal search program

Observe the following procedure to run the automatic search
program.
Procedure

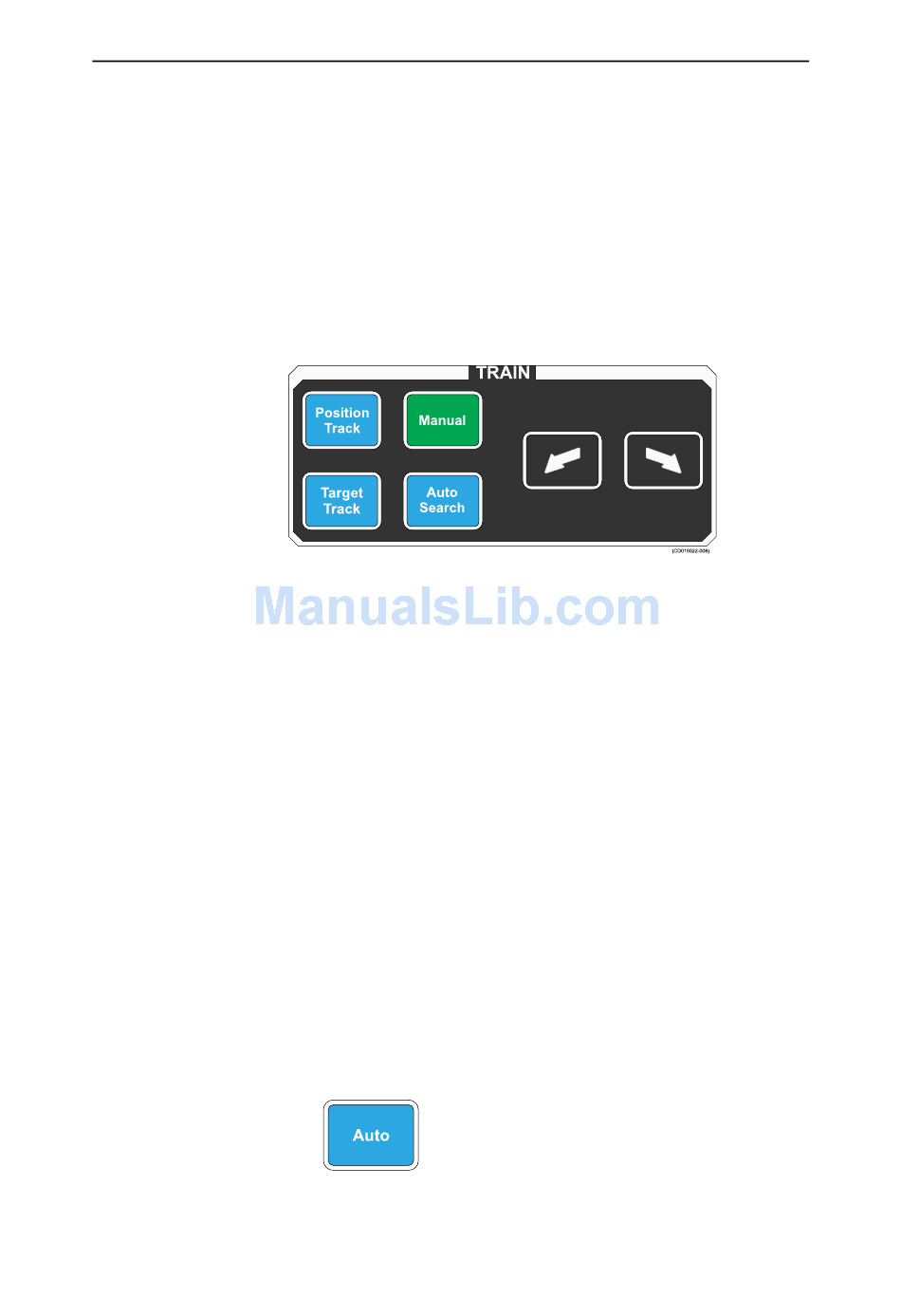

1 Press the
Auto search
Operating Panel to start the horizontal search program.
2 Hold the
Auto search
one of the two
"arrow"
3 Observe that the opening angle of the search sector is
adjusted accordingly.
4 Release the
Auto search
two buttons.
"arrow"
Observe that the centre of the search sector is trained
5
accordingly.
To exit the search program, press the

How to start the vertical search program

Observe the following procedure to run the automatic search
program.
Procedure
Press the button in the
1
Auto
to start the vertical search program.
2 Hold the button depressed while you also press one of
Auto
the two
"arrow"
button in the
Train
button depressed while you also press
buttons in the
button, press and hold one of the
Manual
field on the Operating Panel
Tilt
buttons in the field.
Tilt
field on the
field.
Train
button.
