Various' Field - Simrad SH90 - REFERENCE MANUAL REV A Reference Manual

Simrad SH90

'Various' field

90

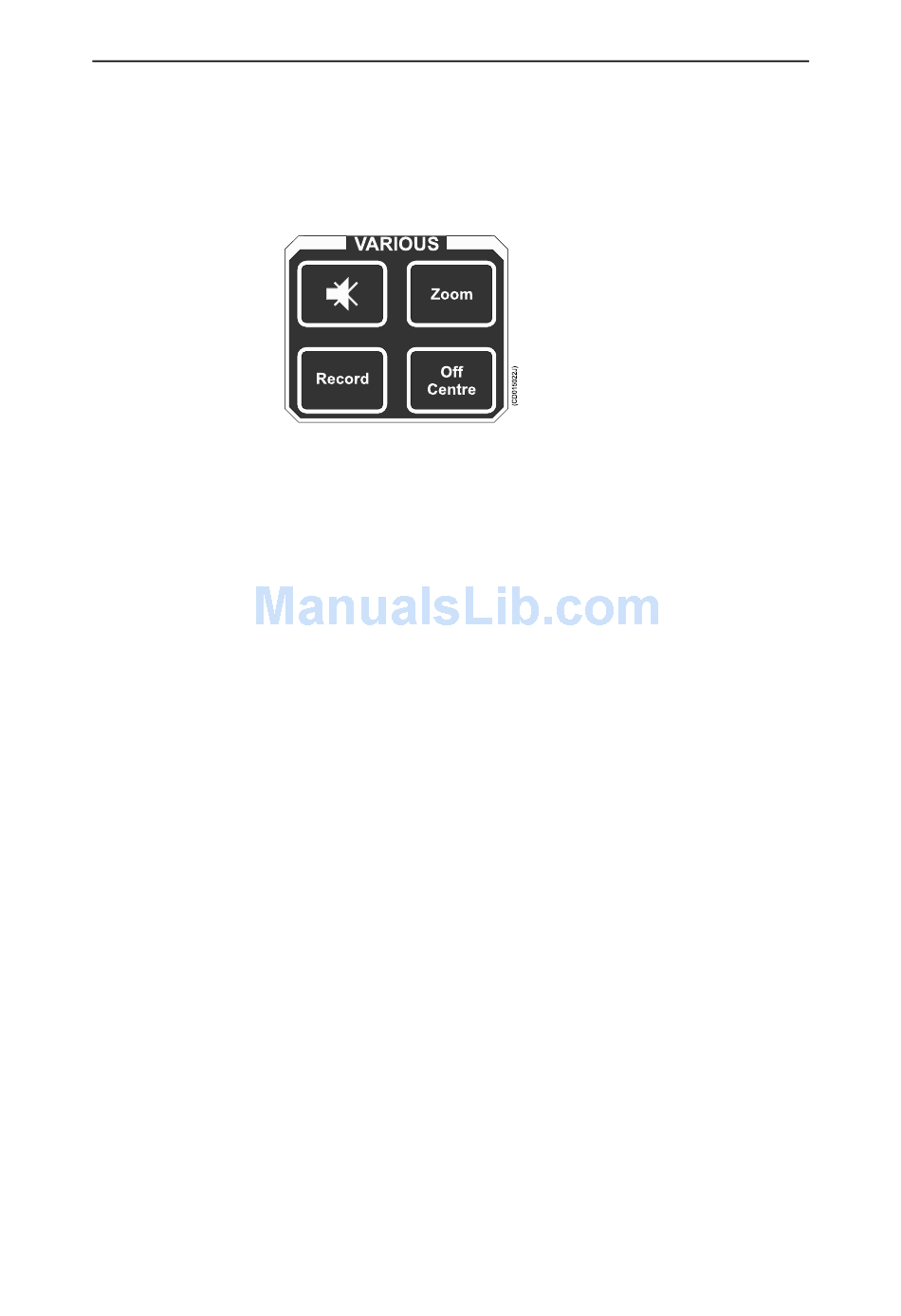

The buttons grouped under various are
.
Off Centre
Mute
The button is used to acknowledge audible alarms, such as
Mute
the , and to acknowledge messages from the message
Fish Alarm
system.
Record
The record function is used for storing either a sequence or single
display picture. Sequential or single storage options are preset
in the menu (available from the
Store/Recall
sequential store mode is selected, the
start and stop the recording. If single shot storage is selected, a
new picture is stored each time the button is pressed. In order to
recall stored images, you need to access the
and click the button.
Recall
Zoom
The Zoom function magnifies an area of the display by
positioning the cursor in its centre and pressing the
Within the sonar presentation area, the
toggle switch for on/off of the zoom function. In the text are of
the screen (the four corners), the
Off centre
The Off centre function moves the
cursor's position on the display. This adjusts the presentation
to fill the screen accordingly.
Related topics
• Display menu on page 97
• Store/Recall menu on page 103
• Store Mode on page 163
• Recall Mode on page 153
, ,
Zoom Record
menu). If
Setup
button is used to
Record
Store/Recall
Zoom
button works as a
Zoom
button works in steps.
Zoom
symbol to the
Own vessel
and
Mute
menu,
button.
