Display Gain

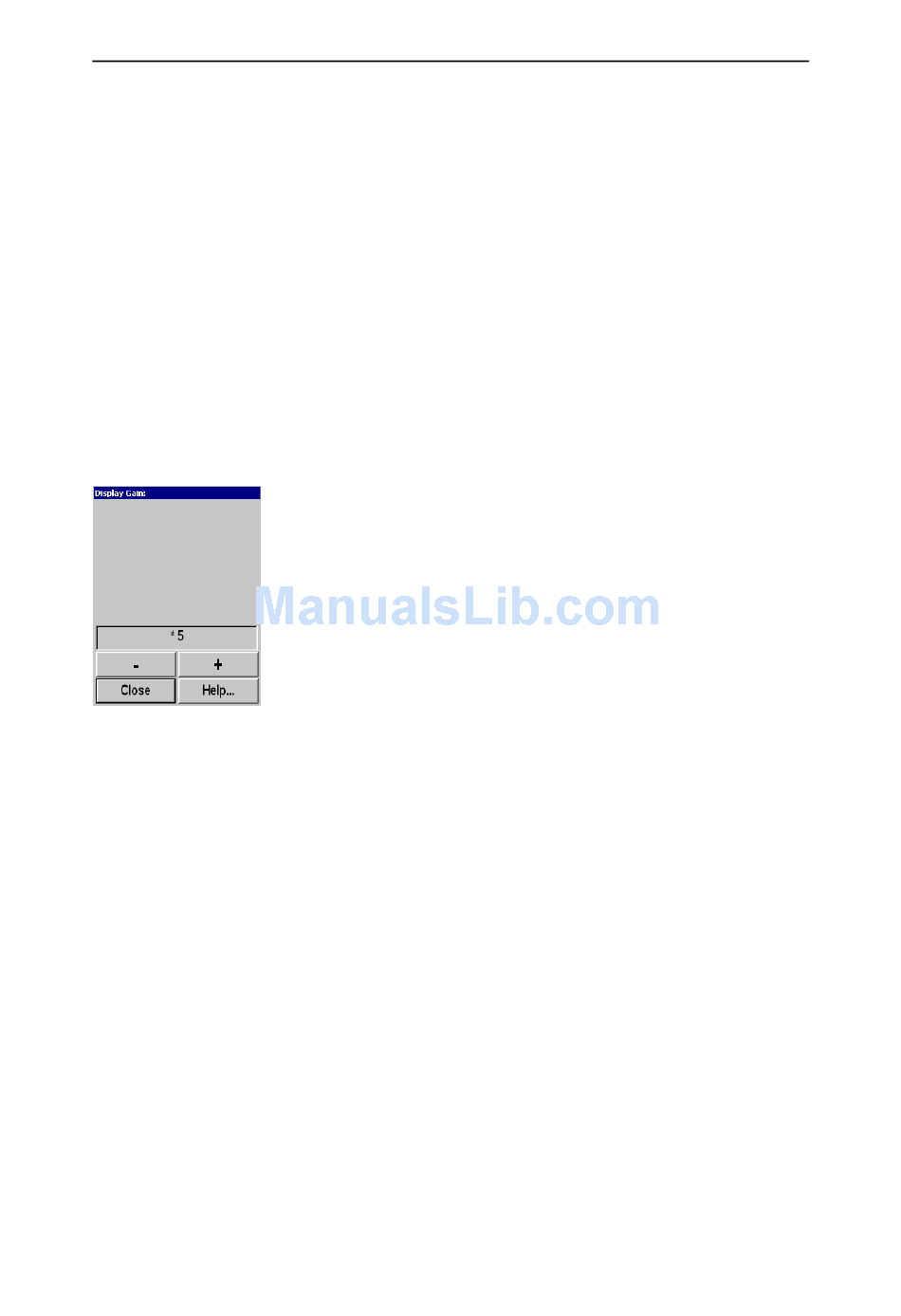

Dialog description
The
parameter dialog opens when you click the
Display Gain
button in the
Display Gain
These settings increase or decrease the presentation of the echo
colours on the display. In order to adjust the receiver gain, refer
to the individual
Gain
and
menus.
Vertical
Display Gain options
•
+ (plus): Click to increase the display gain.
•
– (minus): Click to decrease the display gain.
•
: Click to close the parameter dialog.
Close
•
: Click to access the on-line help.
Help
Related topics
•
Display menu on page 97
•
Gain on page 137
