Installing the bezel assembly
You can replace a damaged bezel on an IBM Flex System p24L Compute Node.
About this task
If the bezel becomes damaged, you can install a new bezel by using the following procedure.

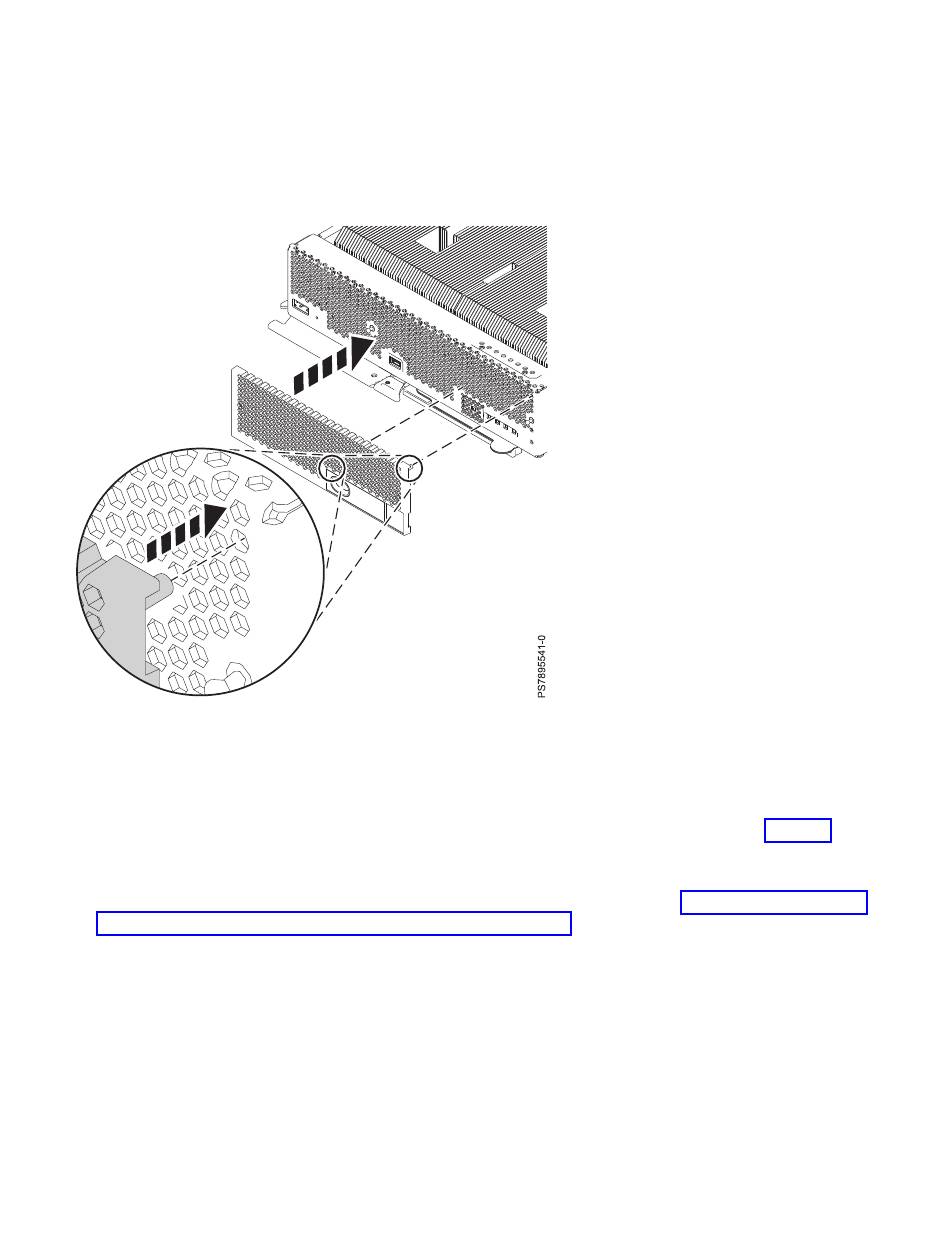

Figure 9. Installing the bezel assembly in an IBM Flex System p24L Compute Node
To replace a bezel on the compute node, complete the following steps:
Procedure
1. Align the bezel with the compute node according to the circled locations indicated in Figure 9.
2. Align the bezel assembly with the front of the compute node. Firmly press the bezel at the sides
where the two pins protrude from the face of the compute node until the assembly clicks into place.
3. Install the compute node into the IBM Flex System Enterprise Chassis. See "Installing the compute
node in an IBM Flex System Enterprise Chassis" on page 76.
