System-board connectors
Compute node components attach to the connectors on the system board.

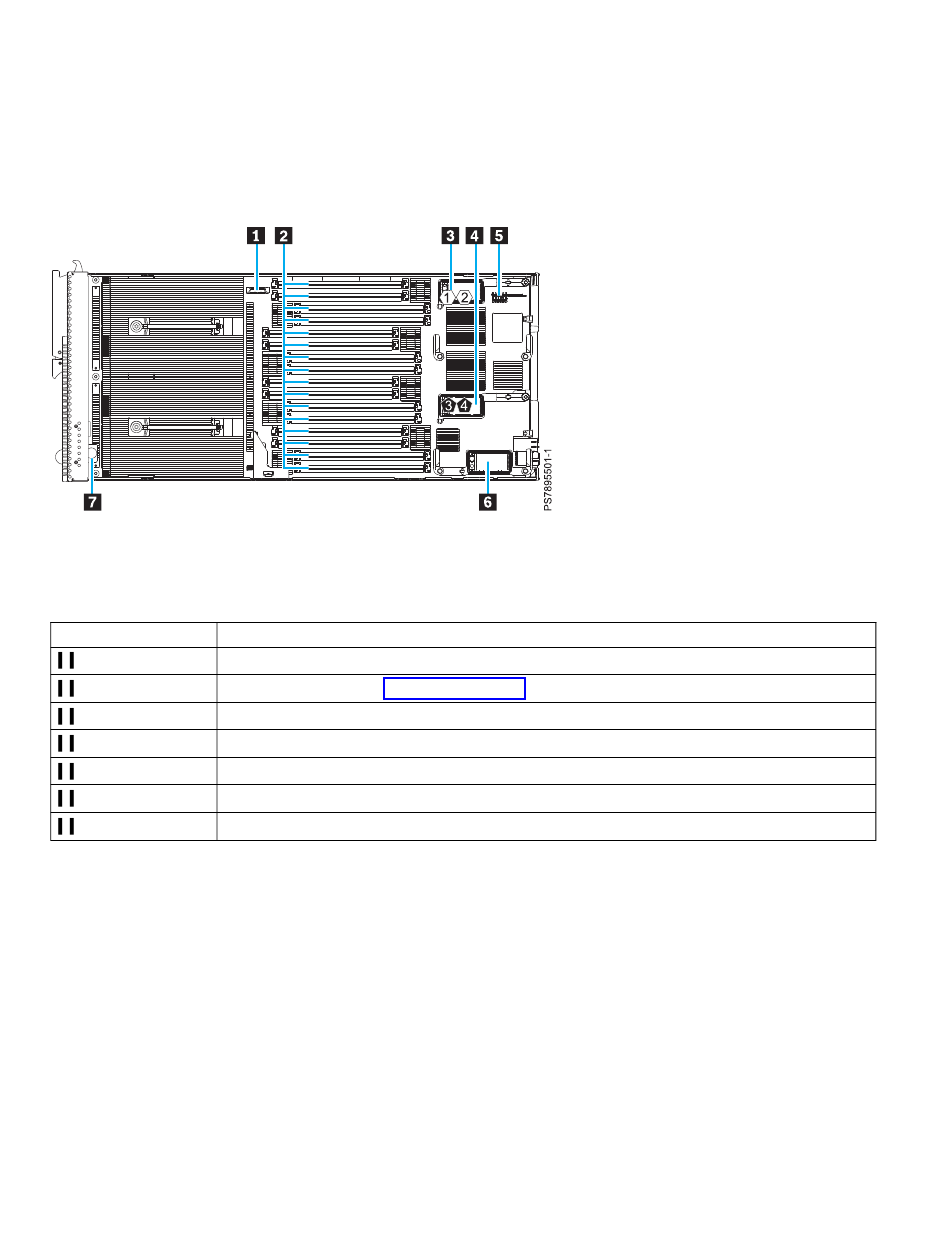

The following figure shows the connectors on the base-unit system board in the IBM Flex System p24L
Compute Node.
Figure 2. System-board connectors for the IBM Flex System p24L Compute Node
The following table identifies and describes the connectors for the IBM Flex System p24L Compute Node.
Table 2. Connectors for the IBM Flex System p24L Compute Node
Callout IBM Flex System p24L Compute Node connectors
1
3 V lithium battery connector (P1-E1)
2
DIMM connectors (See Figure 3 on page 13 for individual connectors.)
3
I/O expansion card top connector for chassis bays 1 and 2 (P1-C18)
4
I/O expansion card bottom connector for chassis bays 3 and 4 (P1-C19)
5
Management card connector (P1-C21)
6
Everything-to-Everywhere (ETE) connector (P1-C20)
7
Light path card
The following figure shows individual DIMM connectors for the IBM Flex System p24L Compute Node
system board.
