SmartRelay 3 system (Manual)
-
+
1(1)
<
1(2)
2(1)
<
2(2)
+1
-
B1
A1
+2
-
B2
Controller
A2
+3
-
B3
A3
O4
O3
O2
O1
O+
I3
I2
I1
-
I+

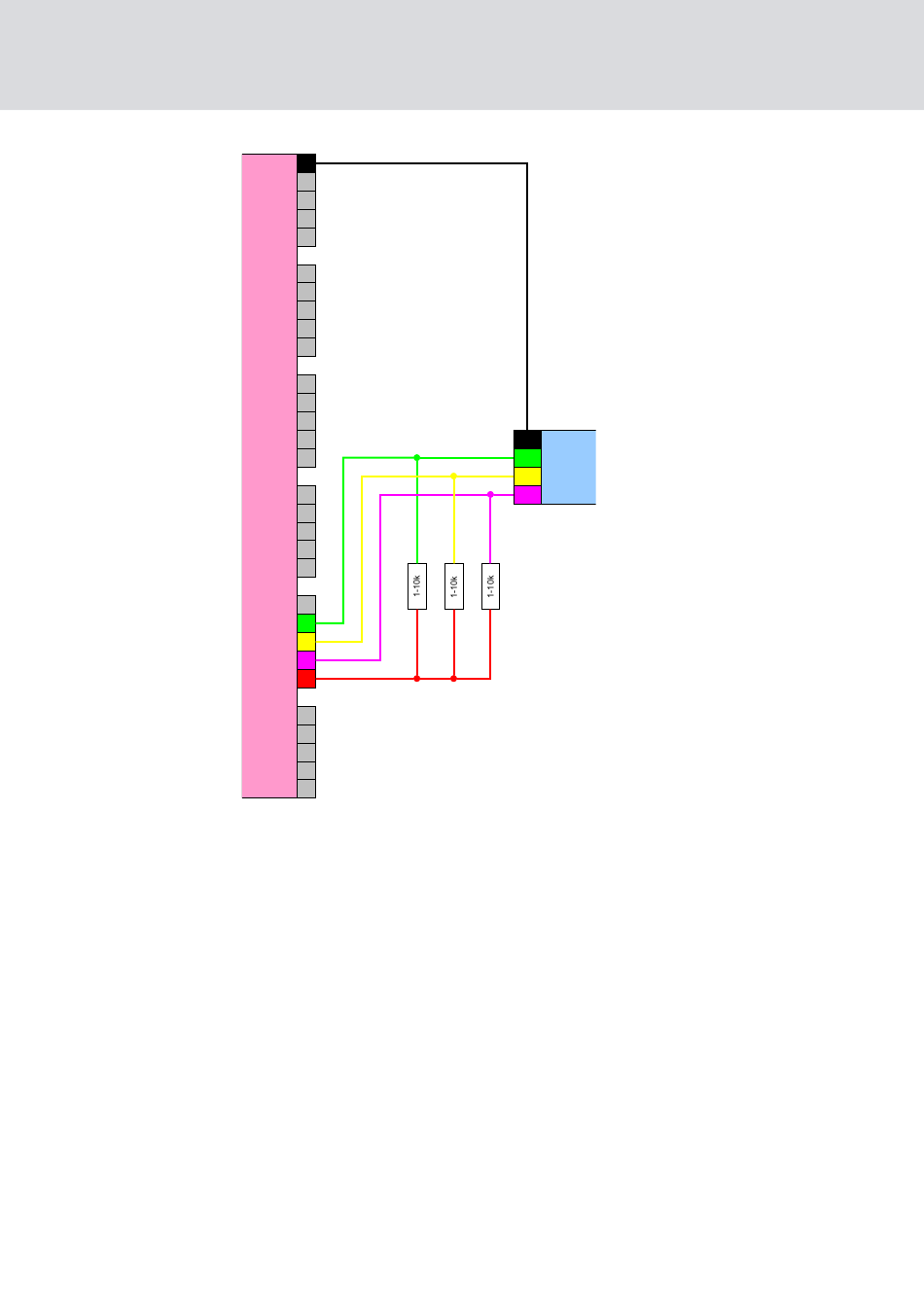

Specifications for the serial interfaces with CLS
Your SmartRelay is not only able to read identification media and switch a
relay, but also serve solely as a reader for identification medium data. This
data comprises:
Customer ID or locking system ID

Transponder ID

The identification medium data read is then forwarded to third-party
systems via a serial interface in various data formats. Examples of such
external systems:
Attendance recording systems

Canteen billing systems

This allows to control all relevant systems with just one identification
medium, e.g.:
Building automation systems

GND
CLS
External
system
CLK
DATA
