9.2.1 Determining installation position for an external reader
9.2.1.1 Use of transponders
(Manual)

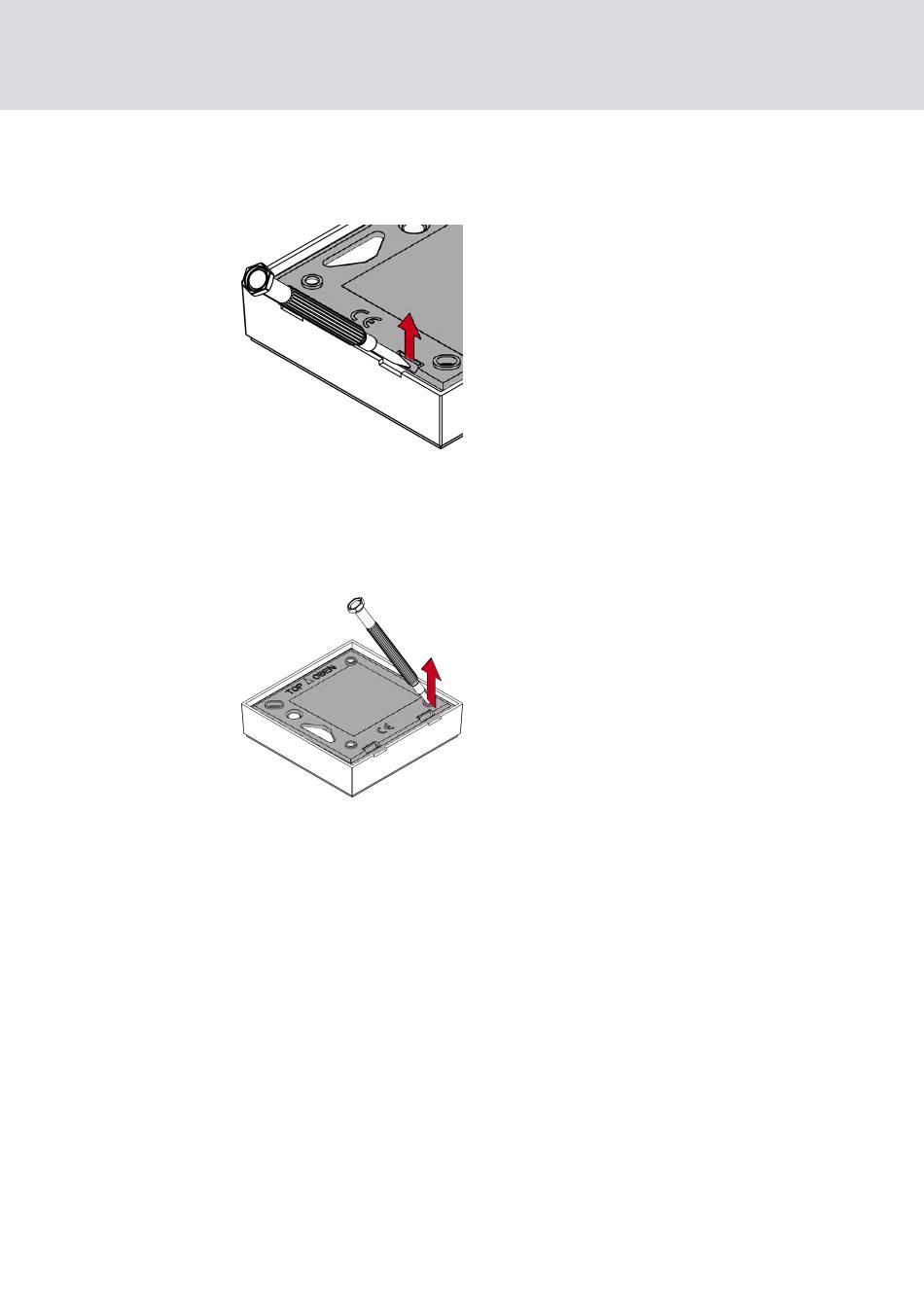

3. Press and hold the clip down and use the slotted screwdriver to slide
the base plate upwards.
9 Clip stays pressed down.
4. Do the same with the other clip.
5. Insert the screwdriver into the hole and lever the base plate out of the
lid.
Base plate and lid are separated.
9
6. Fasten the base plate in its required location (see
tion position for an external reader [
7. Wire the reader (see Connections).
8. Place the lid on the base plate again.
Reader is installed.
9
The type of identification media used determines the external reader
installation position.
Active ID media (transponders) have a wider read range than passive ID
media (cards).
The transponder-to-reader range (read range) extends up to 100 cm.
Determining installa-
102] ).
}
