Front Panel

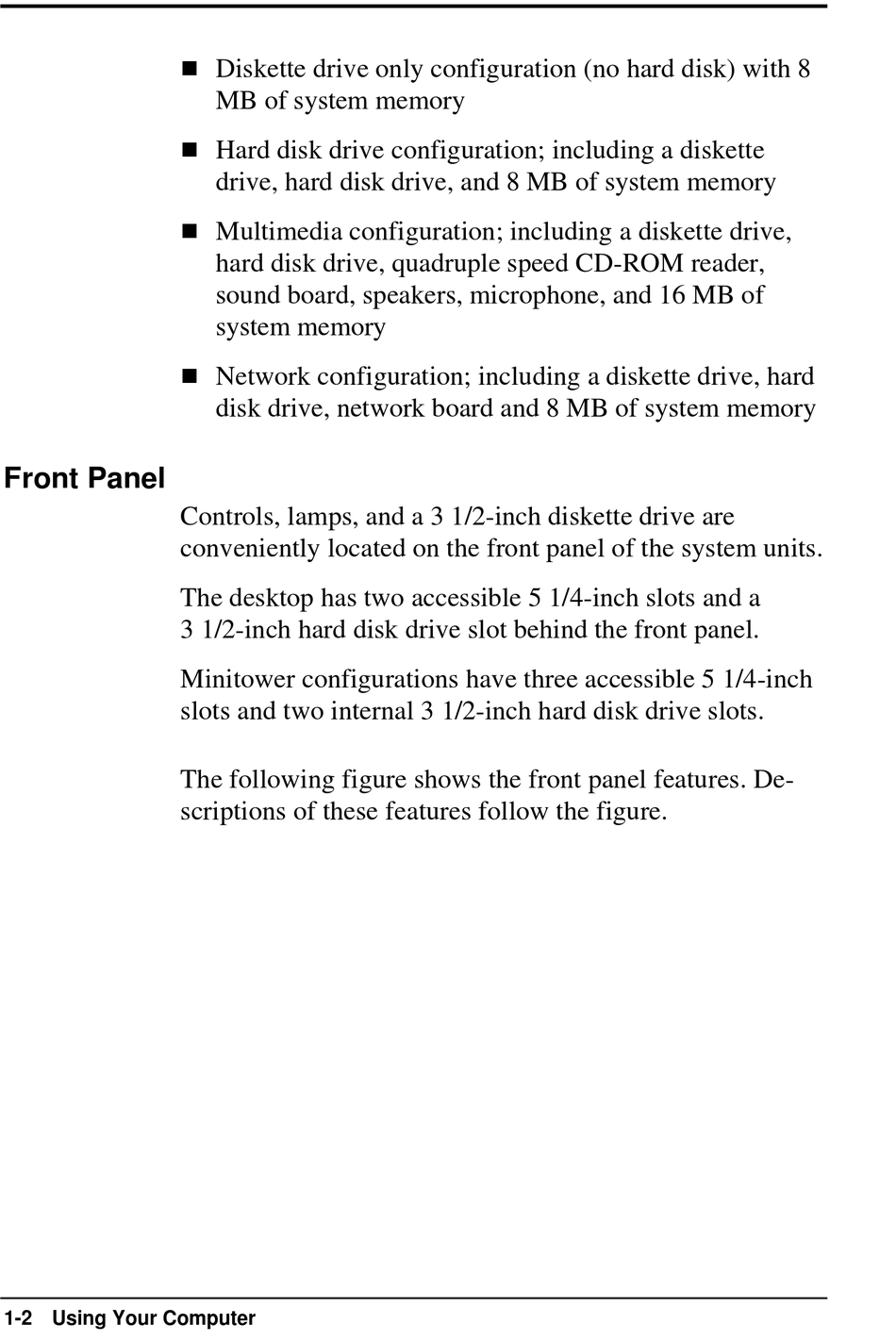

1-2 Using Your Computer
n
Diskette drive only configuration (no hard disk) with 8
MB of system memory
n
Hard disk drive configuration; including a diskette
drive, hard disk drive, and 8 MB of system memory
n
Multimedia configuration; including a diskette drive,
hard disk drive, quadruple speed CD-ROM reader,
sound board, speakers, microphone, and 16 MB of
system memory
n
Network configuration; including a diskette drive, hard
disk drive, network board and 8 MB of system memory
Controls, lamps, and a 3 1/2-inch diskette drive are
conveniently located on the front panel of the system units.
The desktop has two accessible 5 1/4-inch slots and a
3 1/2-inch hard disk drive slot behind the front panel.
Minitower configurations have three accessible 5 1/4-inch
slots and two internal 3 1/2-inch hard disk drive slots.
The following figure shows the front panel features. De-
scriptions of these features follow the figure.
