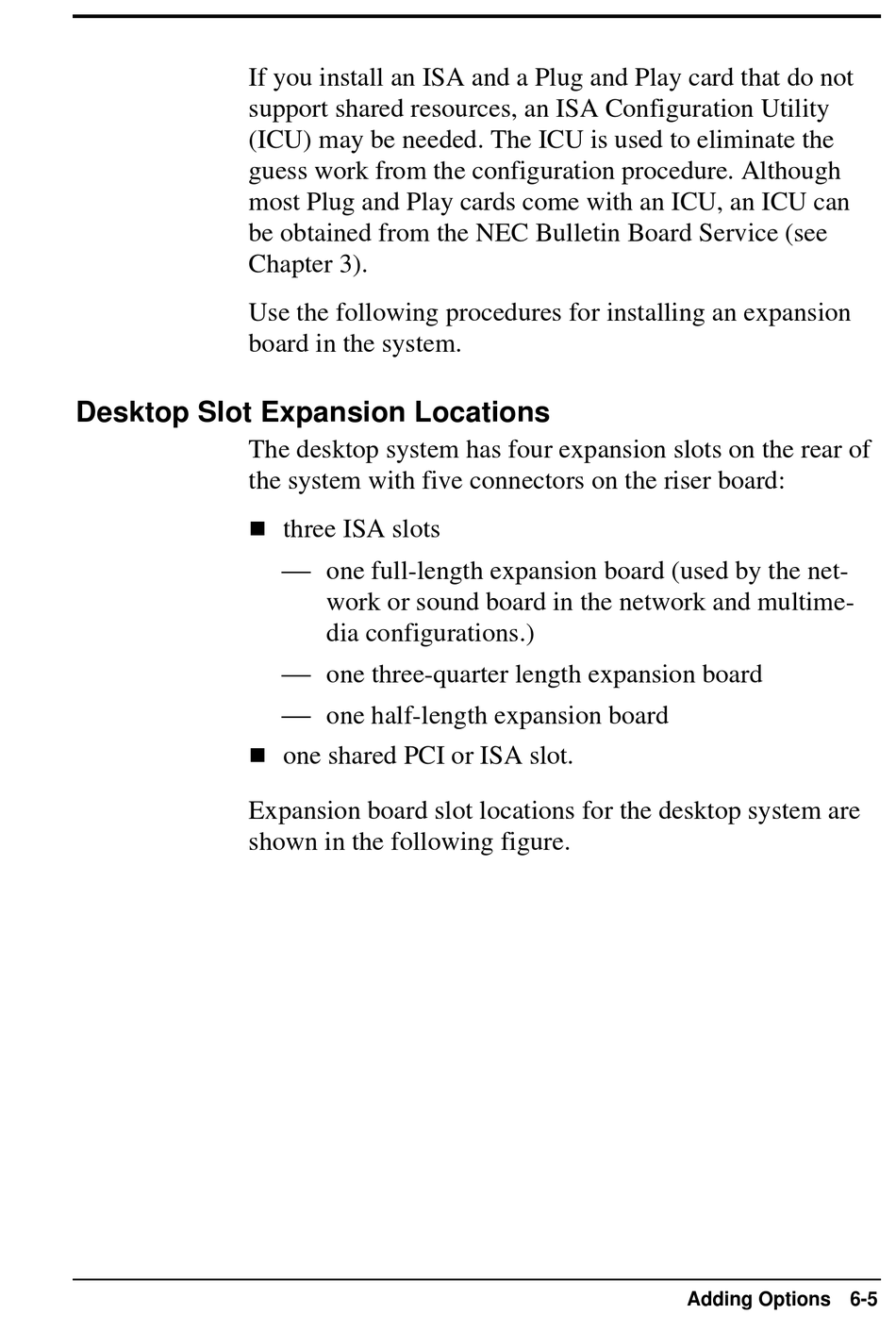

Desktop Slot Expansion Locations

If you install an ISA and a Plug and Play card that do not
support shared resources, an ISA Configuration Utility
(ICU) may be needed. The ICU is used to eliminate the
guess work from the configuration procedure. Although
most Plug and Play cards come with an ICU, an ICU can
be obtained from the NEC Bulletin Board Service (see
Chapter 3).
Use the following procedures for installing an expansion
board in the system.
The desktop system has four expansion slots on the rear of
the system with five connectors on the riser board:
n
three ISA slots
one full-length expansion board (used by the net-
work or sound board in the network and multime-
dia configurations.)
one three-quarter length expansion board
one half-length expansion board
n
one shared PCI or ISA slot.
Expansion board slot locations for the desktop system are
shown in the following figure.
Adding Options 6-5
