Mounting the WiRCU-BOX (WLAN)

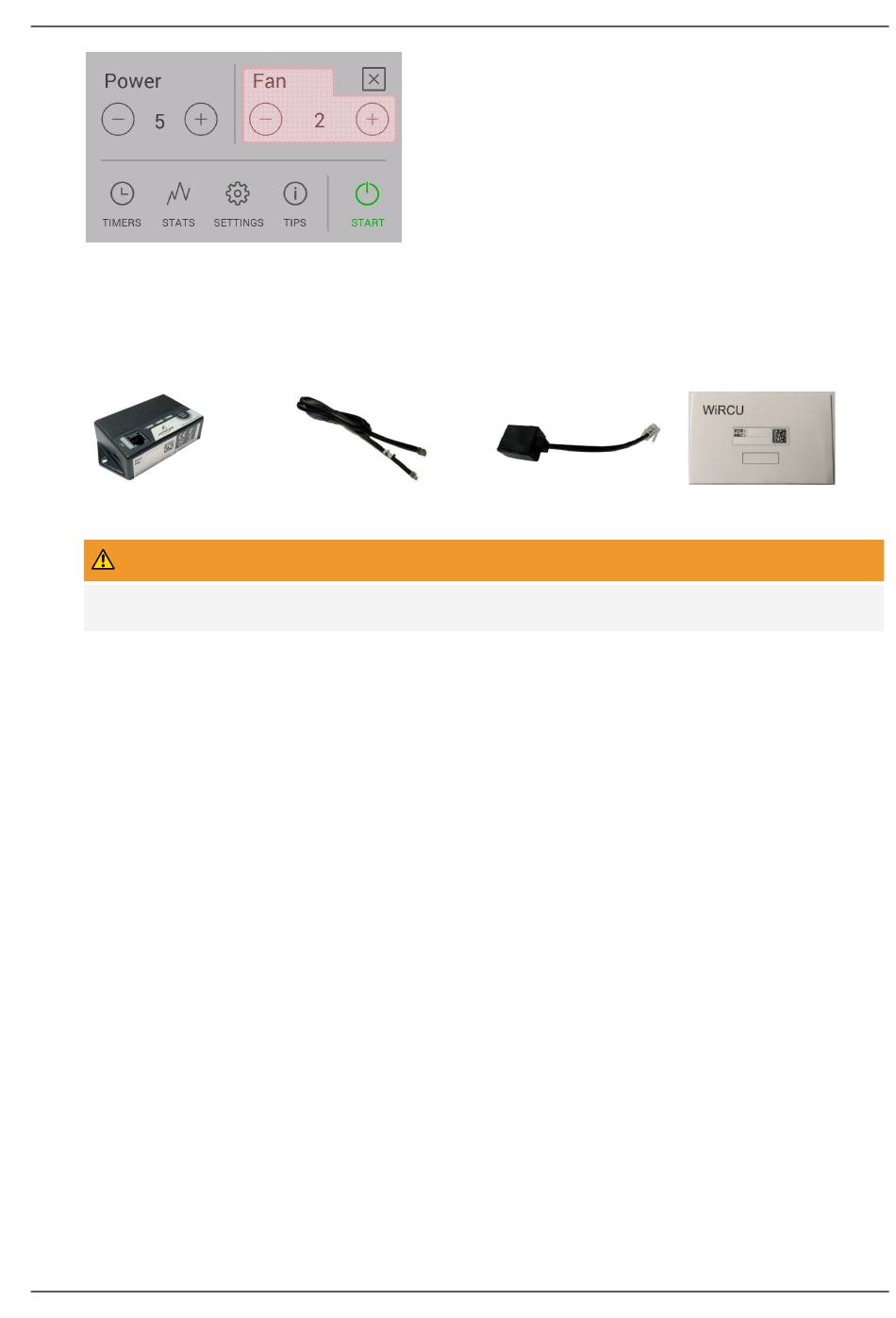

9.1.6.1 WLAN module OPTION scope of delivery
WLAN BOX
WARNING
The WLAN Box must not come into contact with water, cleaning agents, solvents or other liquids.
These will damage the box's electronics and cause malfunctions.
Technical characteristics:
• Temperature range for storage and operation: -20°C to +60°C
• Permissible air humidity for storage and operation: max. 95 %, non-condensing
• Wireless type: 802.11 b/g/n 2.4 GHz
• Host controller link: proprietary protocol
• Dimensions: 76 x 51 x 23 mm
• Mounting on stove: 2 screws (hexagon socket M4x8)
• Connections: Micro USB connection for firmware update, RJ11 connection for communication and
power supply
• Protection class: IP20 - when mounted in recommended position
Technical requirements for the WLAN network:
• Wireless type: 802.11 b/g/n 2.4 GHz
• Security encryption: WPA2 or clear/unencrypted
• No MAC address filtering
• TCP ports 5001 & 5101 must be activated
For the correct configuration of your WLAN router please contact your IT administrator or IT specialist.
EN
21) Now disconnect the stove from the power supply and
22) After the stove has been restarted the fan speed can
1.5 m data cable
start it up again.
now be selected from the main menu. The fan will
only start to turn at a firebox temperature of 200°C.
FUMIS adapter
9 | Installation
Information card with MAC
address and PIN number
