Operating manual Ruby 2.0

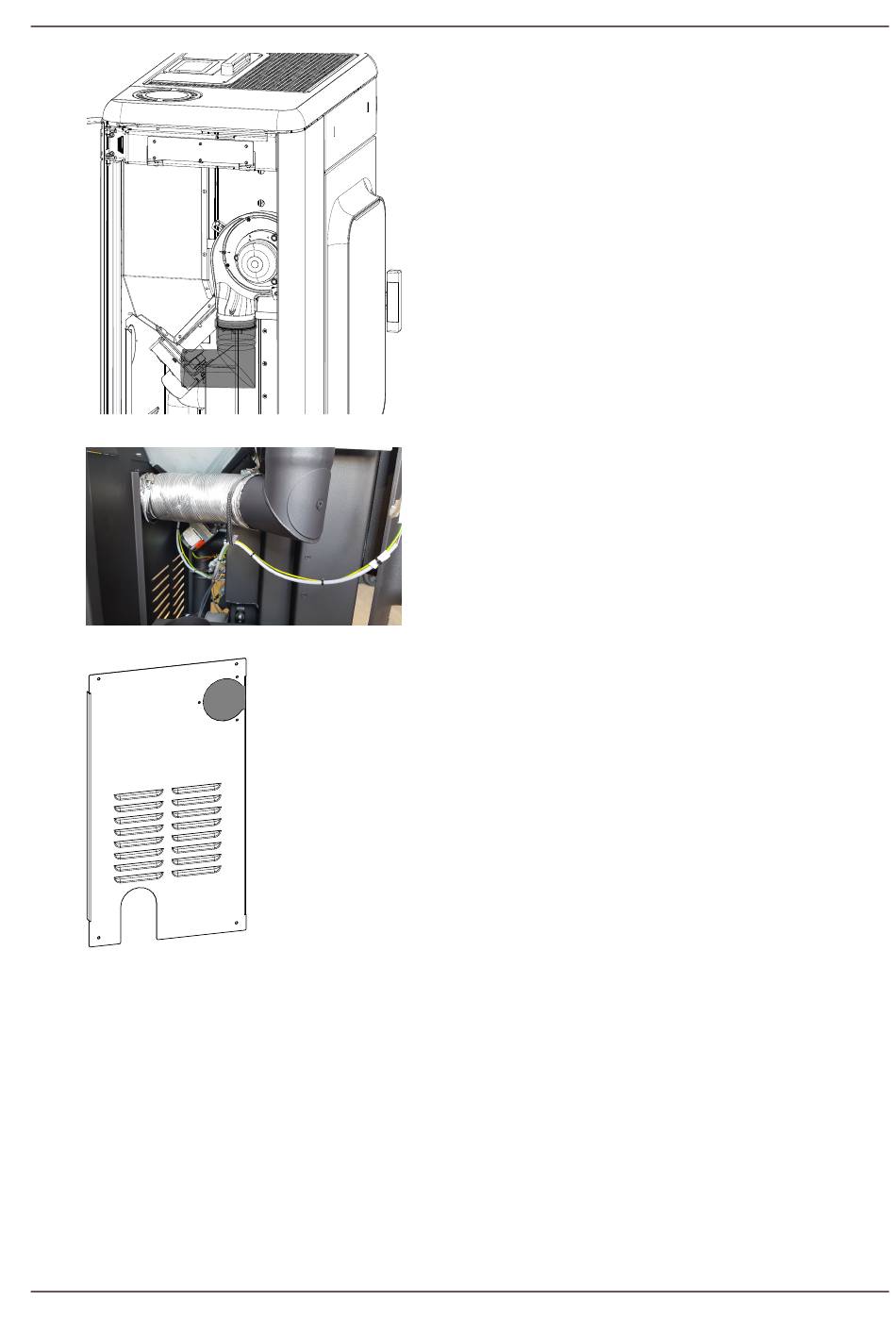

Fig. 39: Connecting to L-pipe section
Fig. 40: Attach aluminium flexible hose.
Fig. 41: removing the perforated cut-out
EN
12) Place the L-pipe section on to the air distribution mod-
ule.
13) Attach aluminium flexible hose as illustrated and se-
cure with hose clamps.
14) The lower cable can be fixed as illustrated, so that it
does not dangle in the stove.
15) Using a saw, remove the perforated cut-out on the
rear panel.
9 | Installation
39
