Operating manual Ruby 2.0

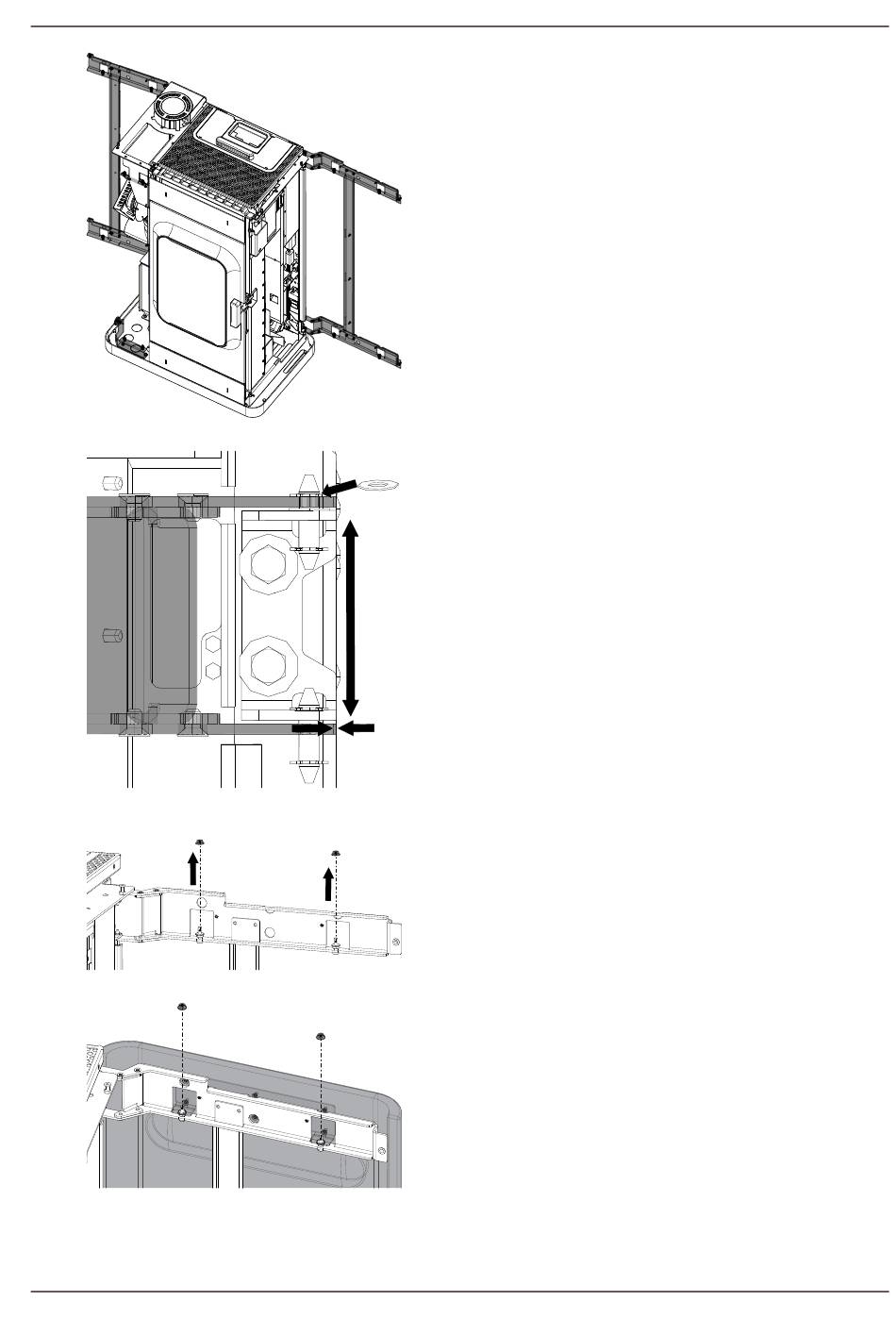

Fig. 17: Swinging open the support brackets
Fig. 18: Adjusting the height of the support
brackets
Fig. 19: Loosening the nuts
Fig. 20: Attaching the ceramic cladding
EN
4) Swing open support brackets.
5) The height of the support brackets can be increased
at the top using an extra shim.
6) On the sides there should be no space between the
support bracket and the pellet stove.
0 mm
7) Nuts are premounted on the support brackets at the
top, bottom, left and right. Loosen these nuts.
8) Now attach the ceramic cladding to the support
brackets and fix with the nuts that were just loosened.
9) Repeat this step for the other side as well.
10) Rotate support brackets with ceramic cladding to-
wards the pellet stove.
9 | Installation
