Operating manual Ruby 2.0

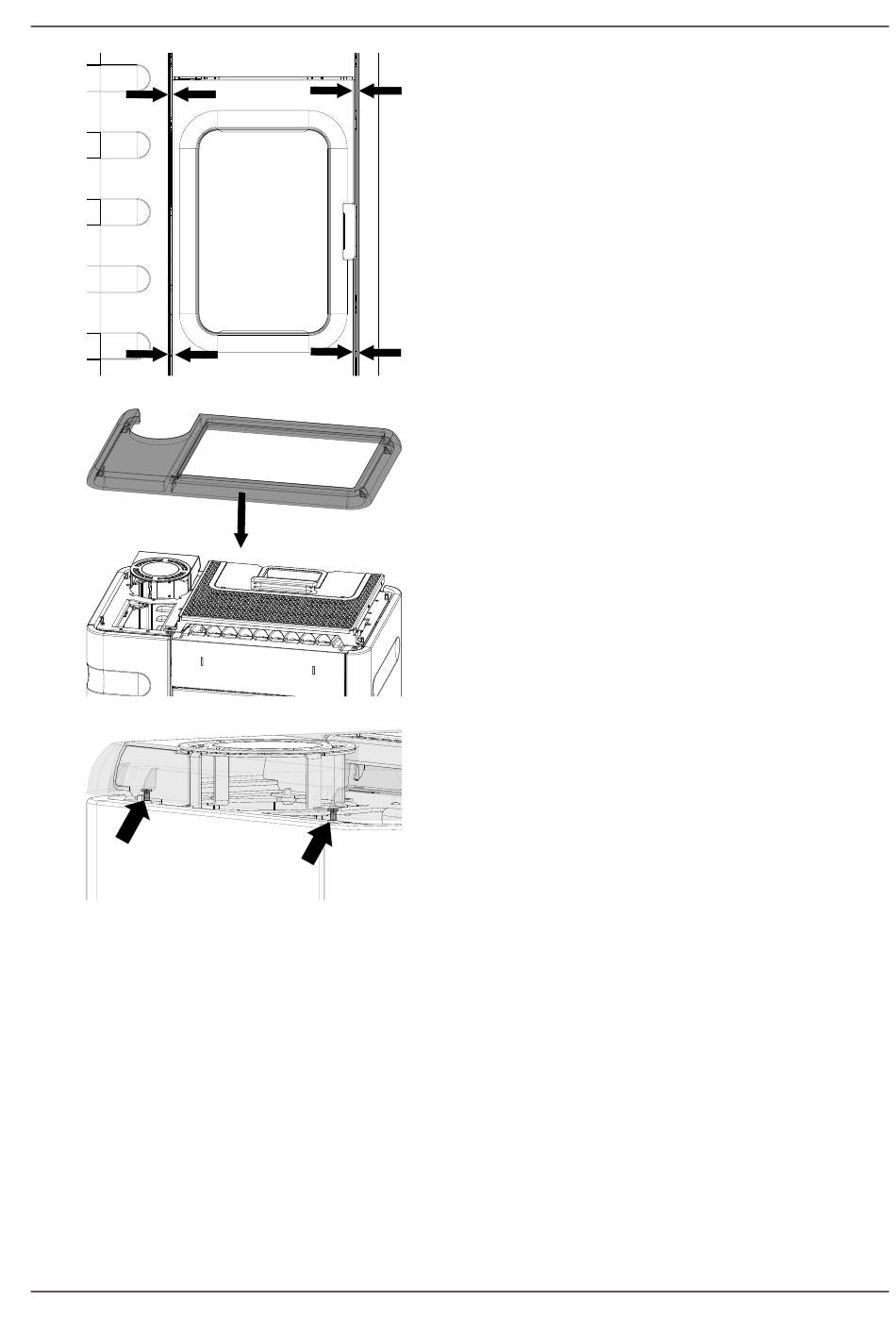

Fig. 22: Adjusting the distance
Fig. 23: Attaching the cover
Fig. 24: Adjusting the lid
EN
14) The ceramic cladding should be at the same distance
on all sides. Otherwise it must be adjusted with the
grub screw.
15) Attach cover.
16) These screws (left and right) can be used to adjust the
distance from the lid.
9 | Installation
31
