9 | Installation

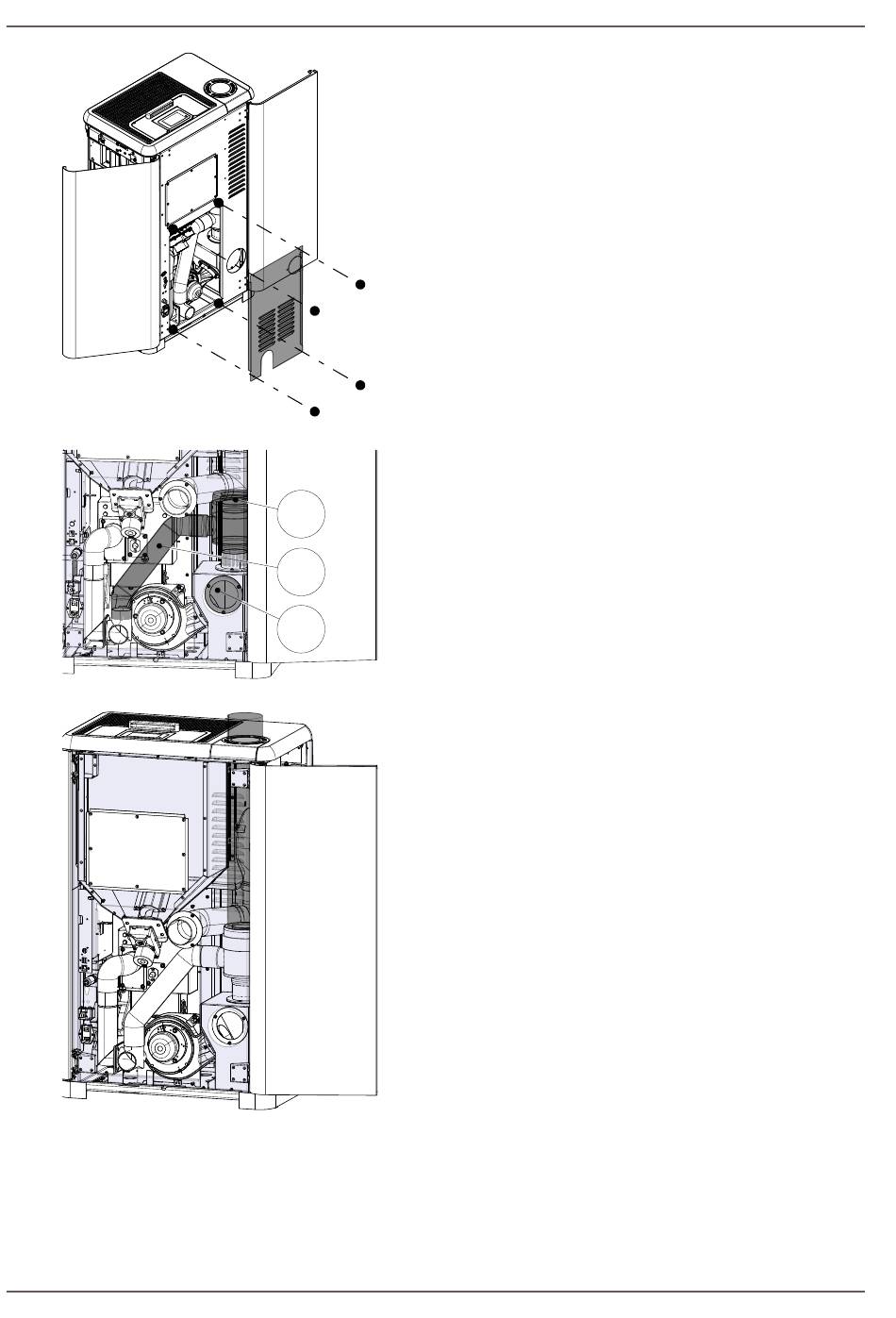

Fig. 11: Removing the rear panel
Fig. 12: Mounting the poujoulat
Fig. 13: Connecting the flue pipe
26
EN
5) Remove the rear panel.
6) Detach cover (1).
7) Mount poujoulat (2) on to the flue gas distributor us-
ing the 3 screws.
2
8) Connect the pipe (3) with the elbow piece to the sup-
ply air.
3
1
9) Connect the flue pipe to the top of the poujoulat.
