Mounting and configuring the air distribution module

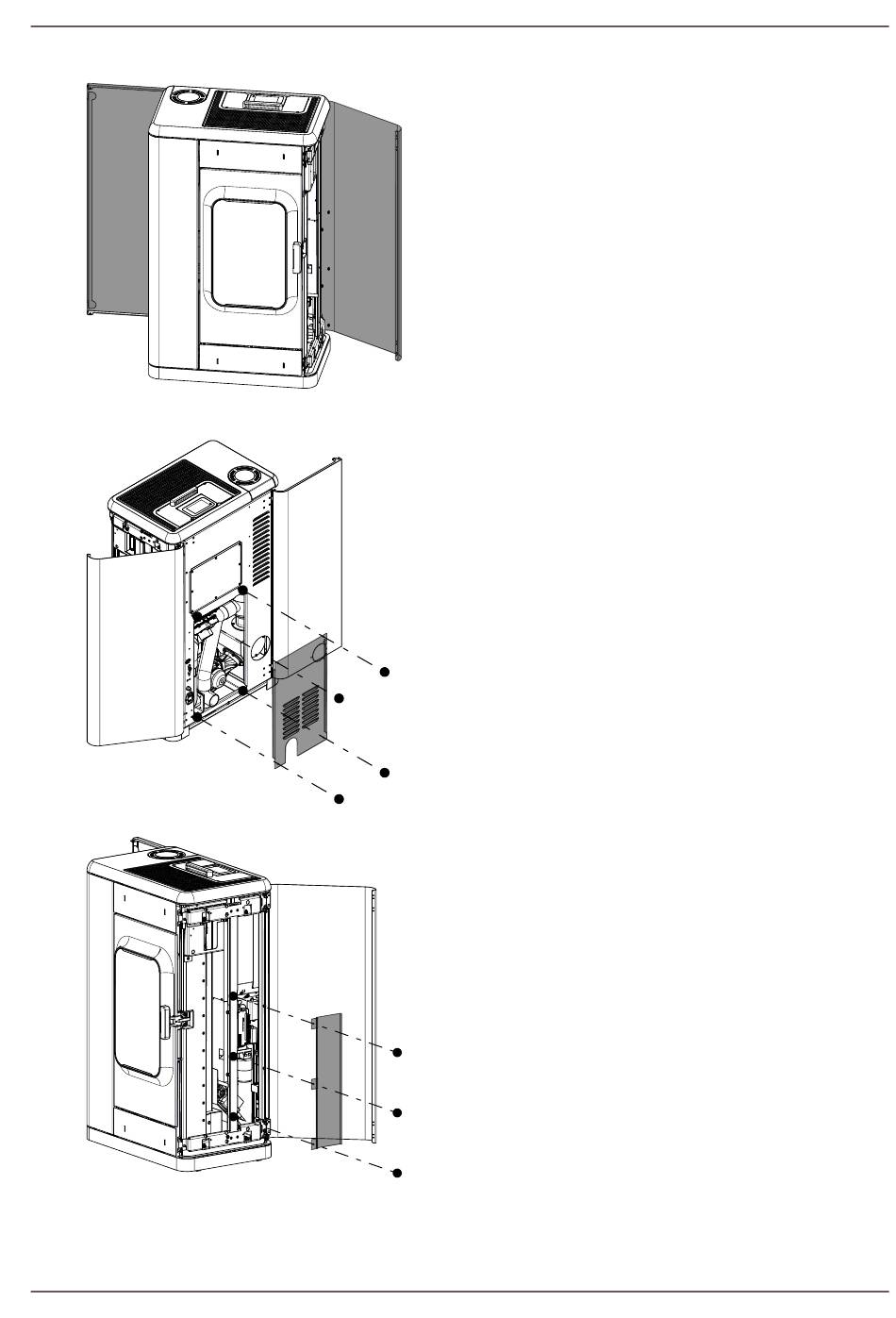

Fig. 30: Opening the left- and right-hand
side cladding
Fig. 31: Removing the rear panel
Fig. 32: Detaching the cover
EN
1) Open left- and right-hand side cladding.
2) Remove the rear panel.
3) Detach cover.
9 | Installation
35
