Operating manual Ruby 2.0

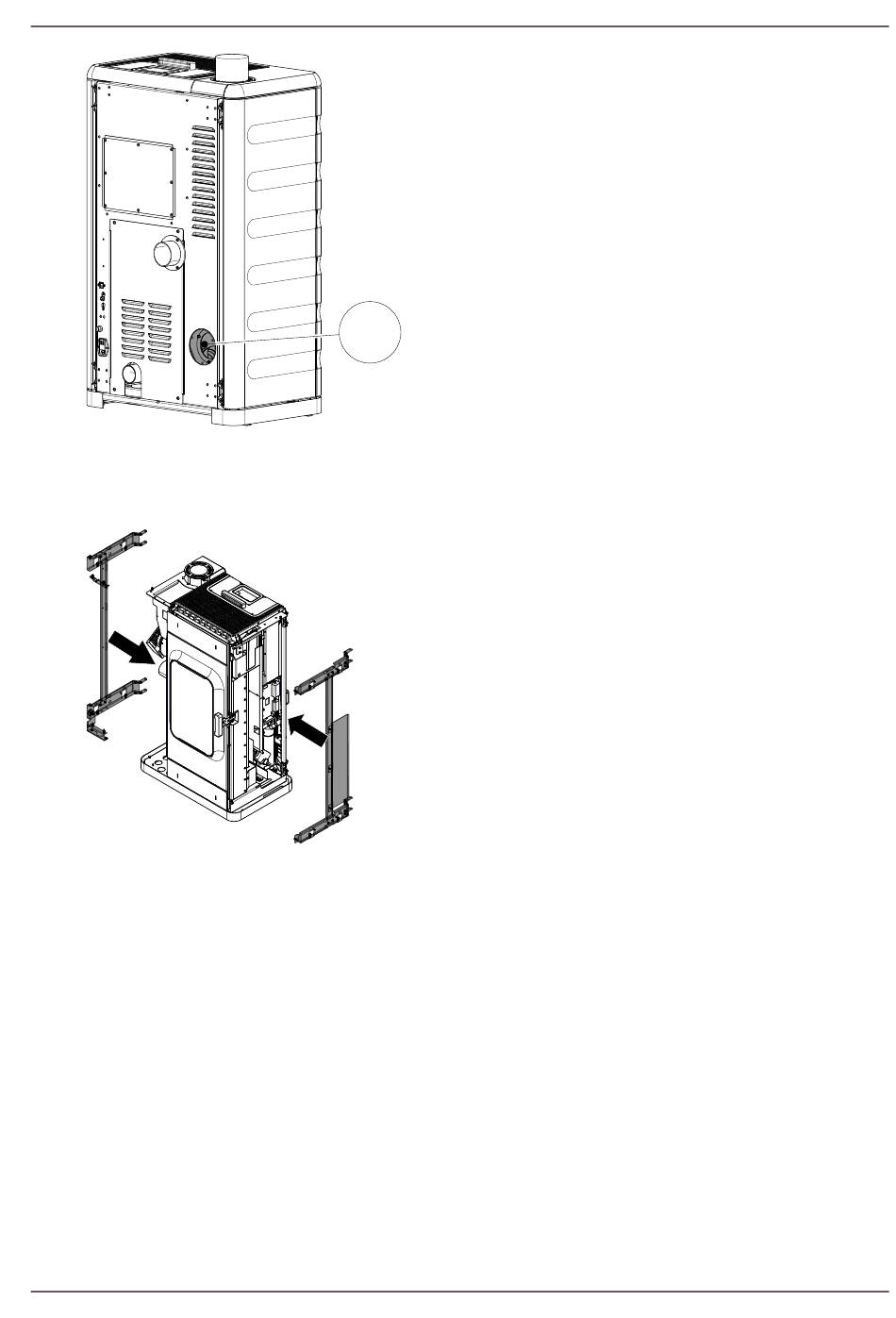

Fig. 14: Attaching the rear panel and side
cladding
9.1.3
Mounting the ceramic cladding
Fig. 15: Attaching the support brackets to
the pellet stove
EN
10) Reattach rear panel.
11) Close the side cladding up again and refasten it.
12) Mount to the rear panel the cover (1) that was re-
moved beforehand.
1
The ceramic cladding support brackets must be mounted
on the pellet stove.
To do so, please proceed as follows:
1) Attach support brackets to the pellet stove.
9 | Installation
27
