Operating manual Ruby 2.0

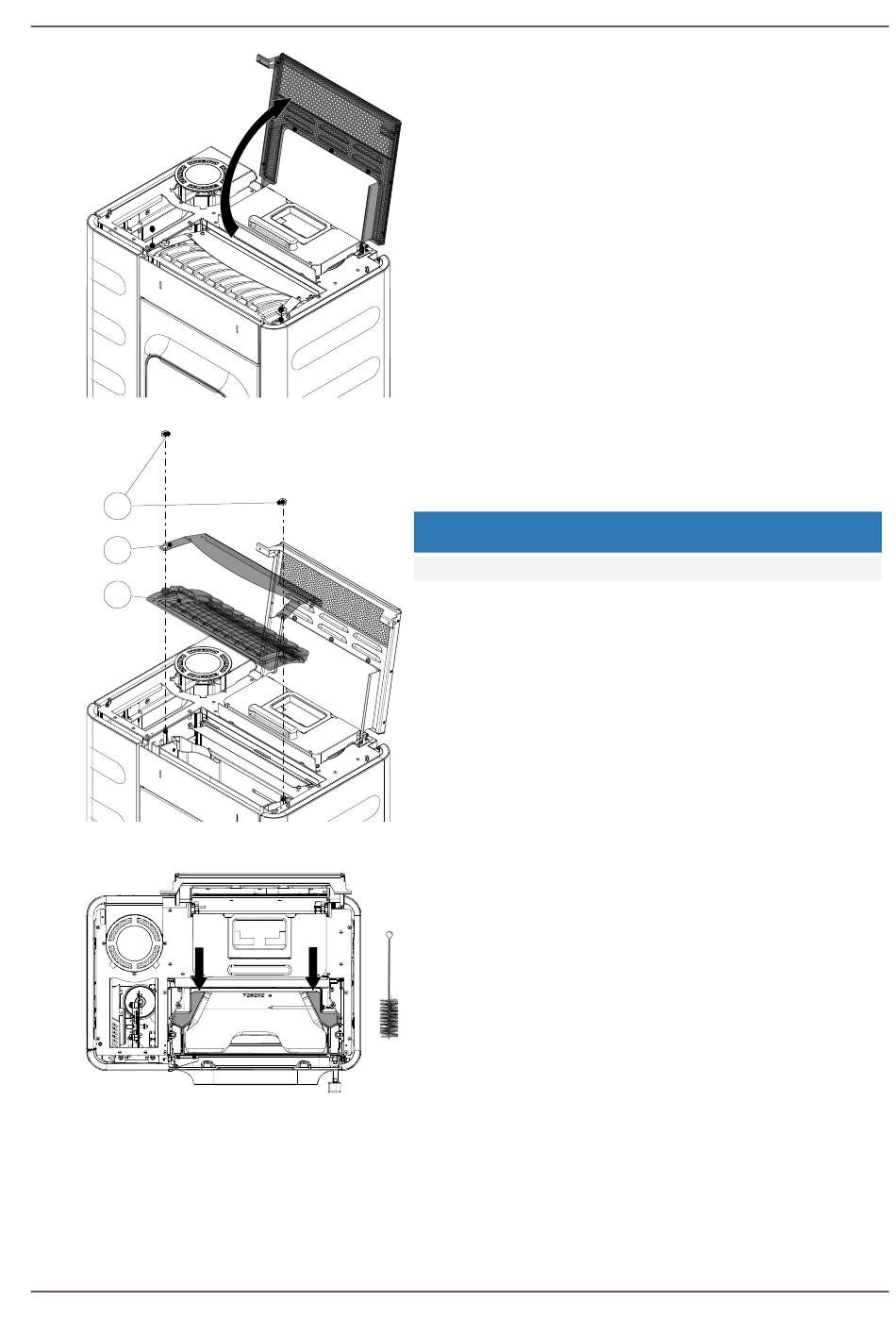

Fig. 85: Opening the cover
1
2
3
Fig. 86: Removing sheet metal heat deflector
and cast iron top plate
Fig. 87: Cleaning the cavity
EN
5) Open cover.
6) Loosen hexagon nuts (1).
7) First remove the sheet metal heat deflector (2).
8) Then remove the cast iron top plate (3).
NOTICE
Do not damage the seals.
9) Clean the coloured cavity with a brush.
15 | Cleaning
