Operating manual Ruby 2.0
17

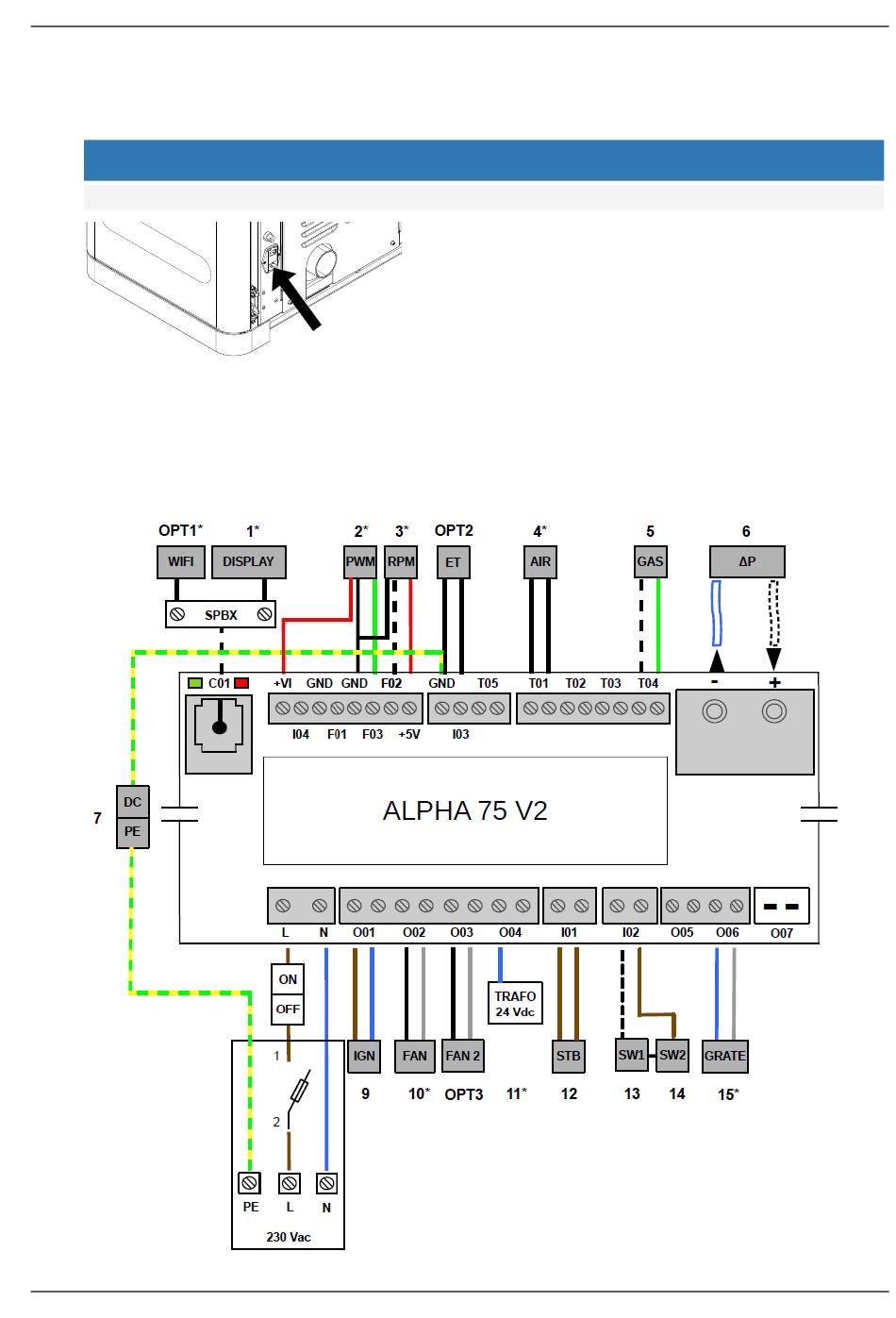

Electrical connection diagram
17.1 Electrical connection
NOTICE
Repairs to your pellet stove must only be carried out by authorised Austroflamm engineers.
Fig. 96: Fuse holder with T2.5A glass tube
fuses
17.2 Model with permanently running screw motor
Electrical connection diagram - overview
EN
Your pellet stove is designed for connection to a 230 V / 50
Hz mains. The connection cable is included.
The mains socket connection is located on the rear of the
appliance and is protected with a T2.5 A glass tube fuse.
The power consumption of your pellet stove is visible on
the nameplate.
17 | Electrical connection diagram
103
