Example Programming

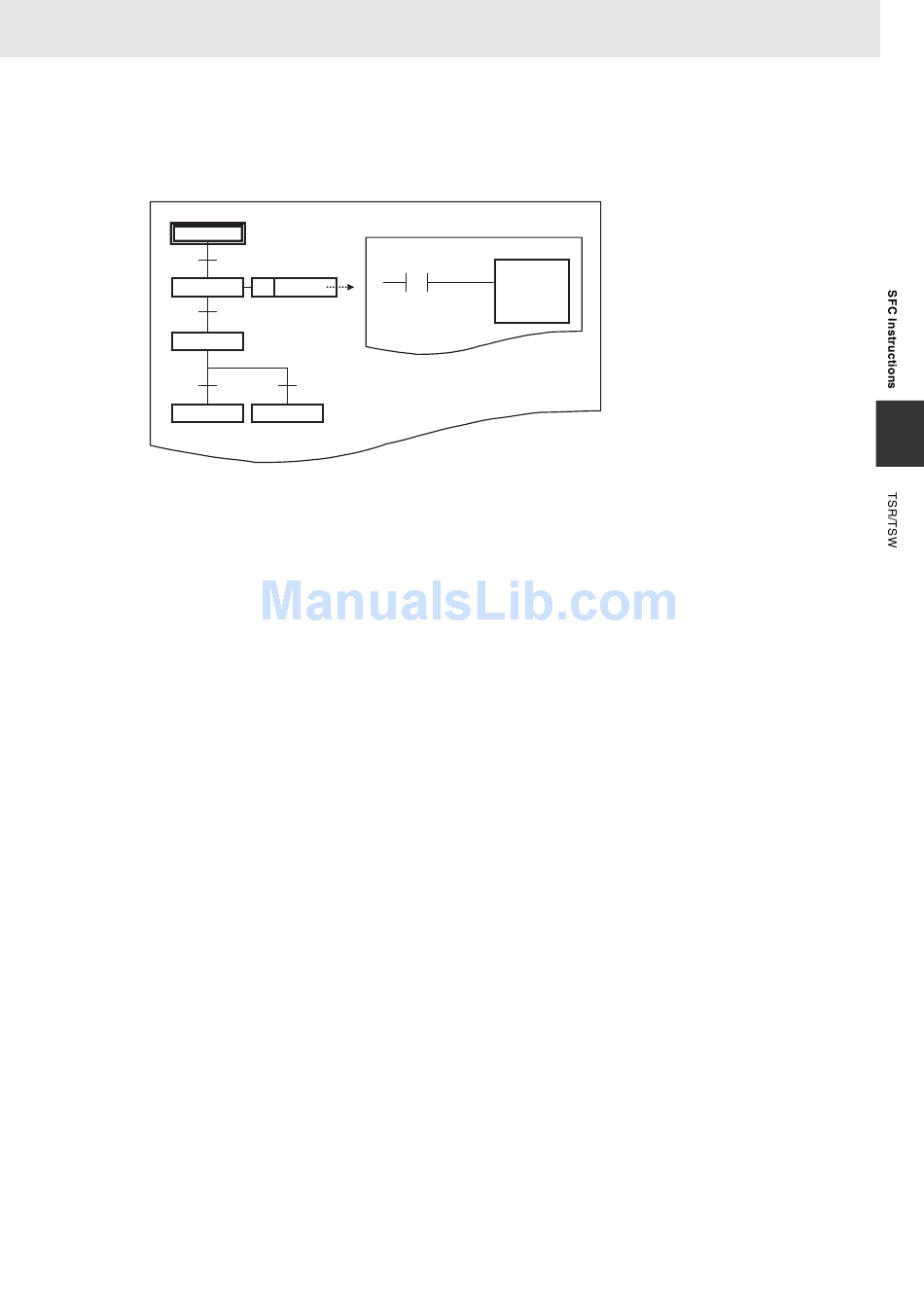

In the following example, the present value of the Step Timer for step 2 is changed to 100 when W0.0
turns ON.
Step1
●
Step2
Step3
Step4
Note The active step is indicated by a solid circle (
Precaution
• Designate Step Flags in the form step_name.X. Refer to the SYSMAC CS/CJ Series Programmable
Controllers Operation Manual SFC Programming (W469) for details.
• These instructions cannot be input or displayed on a Programming Console. "?" will be displayed.
CS/CJ/NSJ Series Instructions Reference Manual (W474)
W0.0
N Action1
Step5
TSW
&100
Step2.T
●
).
