3. Instructions
Data area address
Corresponding
data area
address
Note If there is no CS/CJ-series equivalent to the specified CV-series PLC memory address, an error will occur,
the Error Flag will be turned ON, and the address will not be converted.
Hint
• When an Index Register is used as an operand with a ",IR" prefix, the instruction will operate on the
word indicated by the PLC memory address in the Index Register, not the Index Register itself. Once
the desired PLC memory address has been stored in an Index Register, the Index Register itself can
be used as an operand for an instruction.
1048
FRMCV
D0
IR1
D0 #2001

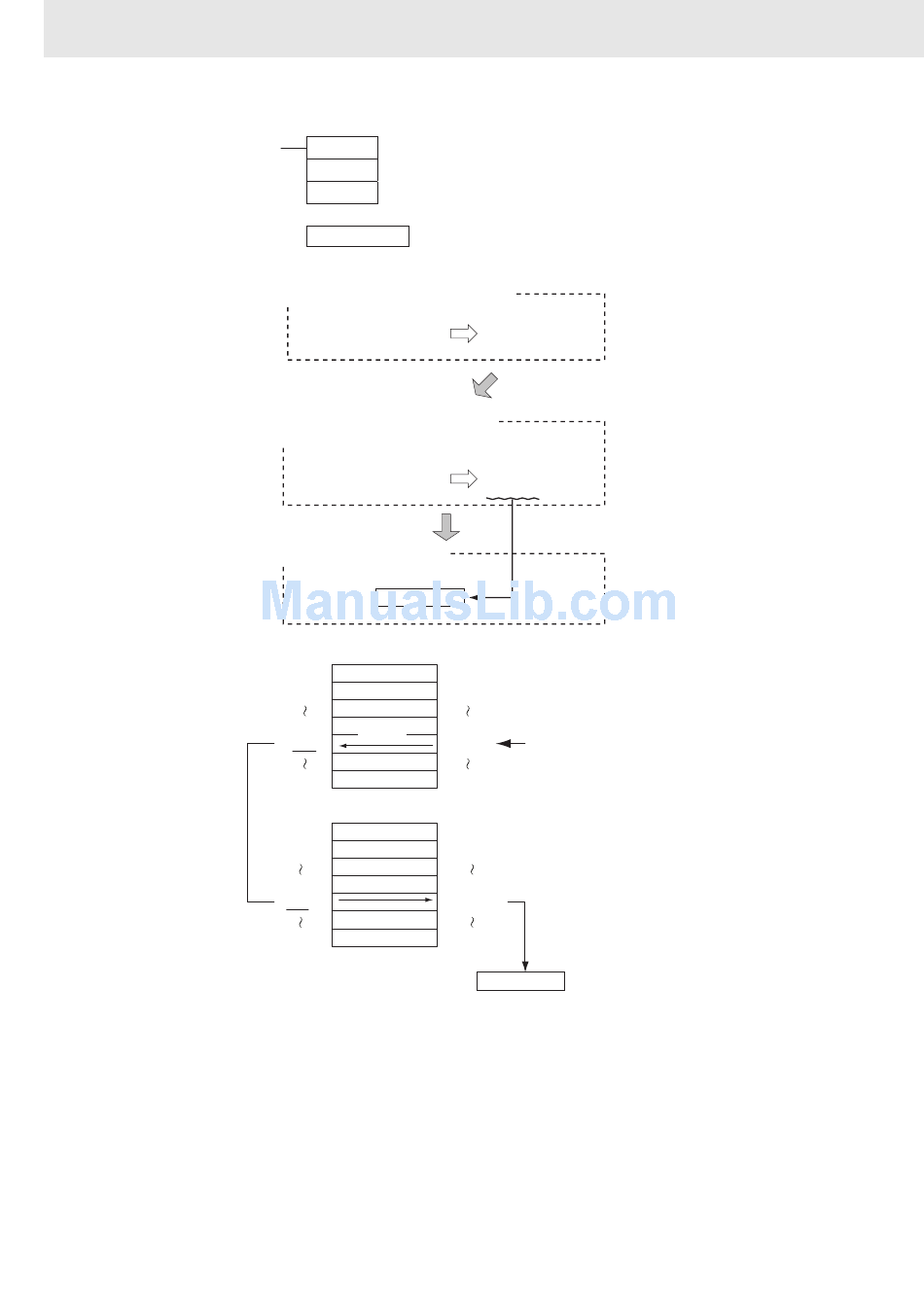

1. The CV-series PLC memory
address is converted to its equivalent
CV-series data area address.
CV-series PLC
memory address
2001 Hex
2. The corresponding CV-series data
area address is converted to its
CS/CJ-series PLC memory address.
CS/CJ-series data
area address
D00001
3. The CS/CJ-series PLC
memory address is stored in D.
IR1 10001 Hex
CV-series
0CH 0000Hex
1CH 0001Hex
D0 2000Hex
Convert
D01 2001Hex
E32765 FFFDHex
CS/CJ-series
0CH 0C000Hex
1CH 0C001Hex
Convert
D0 10000Hex
D1 10001Hex
EC_32767 FFFFFHex
D:
CV-series data
area address
D1
CS/CJ-series PLC
memory address
10001 Hex
Storage
PLC memory address
S
Specify the CV-series PLC
memory address in S. (In this
case, 2001 hex is the PLC
memory address of D1.)
The corresponding CS/CJ-series PLC
memory address is stored in D. (In this
case, data area address D1 is
converted to PLC memory address
10001 hex and stored.)
IR1 10001Hex
