Example Programming

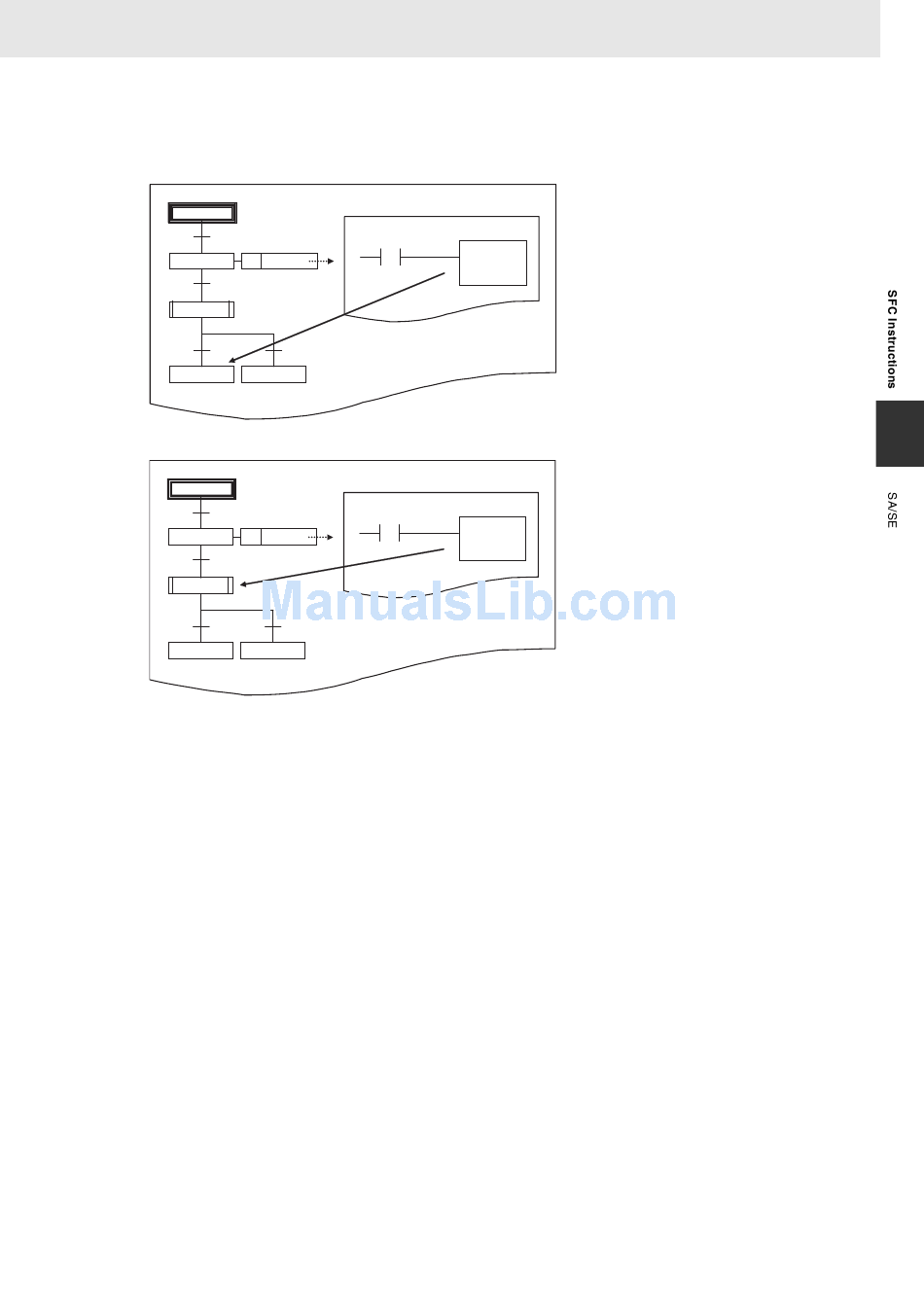

In the following example, step 4 will become active when W0.0 turns ON.
Step1
●
Step2 N
Step3
Step4
In the following example, step 3 (a subchart step) will become active when W0.1 turns ON.
Step1
●
Step2 N
Step3
Step4
Precaution
• Designate Step Flags in the form step_name.X. Refer to the SYSMAC CS/CJ Series Programmable
Controllers Operation Manual SFC Programming (W469) for details.
• Steps within subcharts cannot be specified.
• These instructions cannot be input or displayed on a Programming Console. "?" will be displayed.
CS/CJ/NSJ Series Instructions Reference Manual (W474)
W0.0
Action1
Made active
Step5
W0.1
Action1
Made active
Step5
SA
Step4.X
SA
Step3.X
