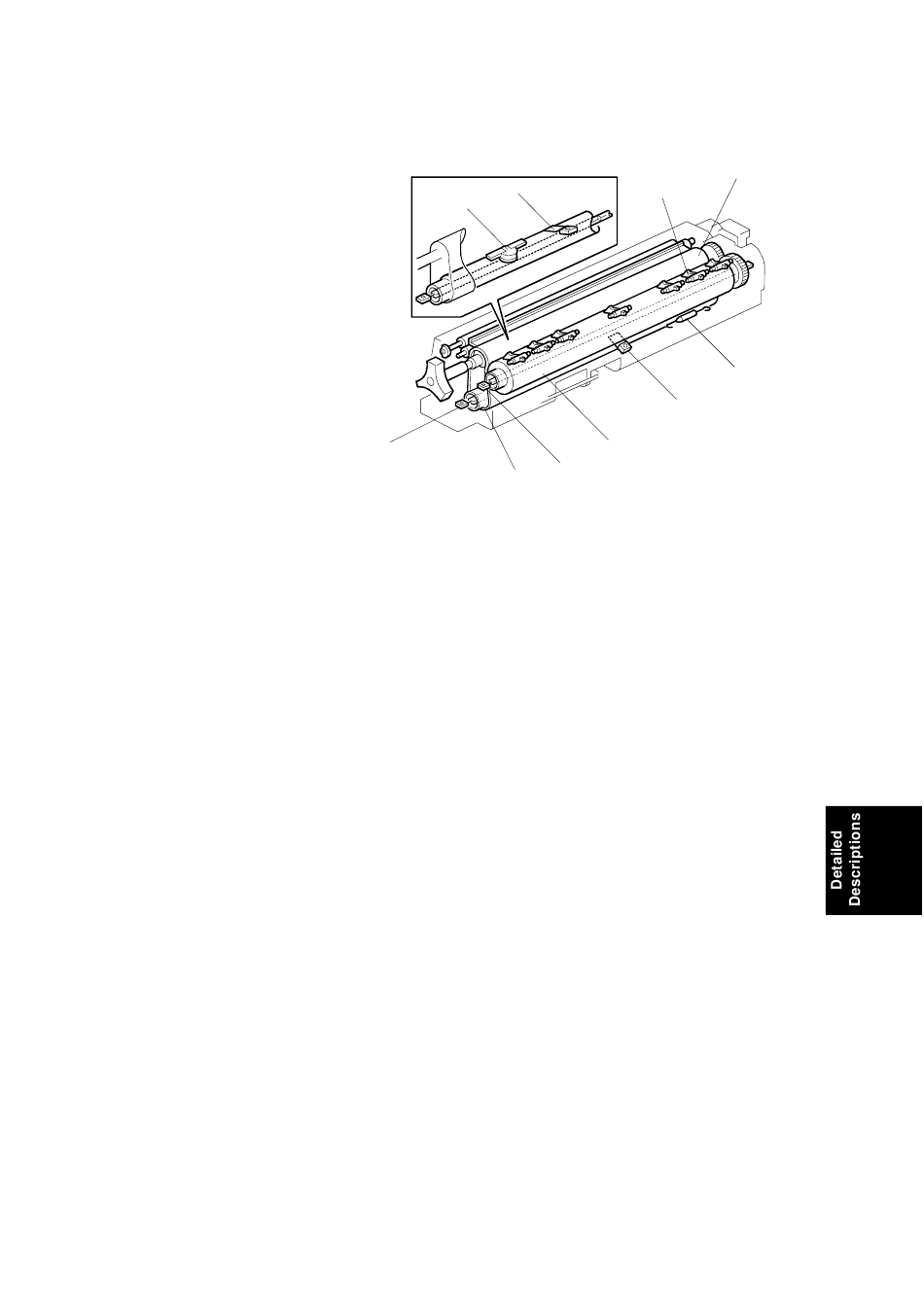

6.9.2 FUSING UNIT CONFIGURATION

[A]: Fusing belt
[B]: Heating roller
[C]: Lamp (770 W)
[D]: Thermostat
[E]: Thermistor
[F]: Pressure roller
[G]: Lamp (350 W)
[H]: Thermistor
[I]: Thermofuse
[J]: Pawl

Fusing Belt

This machine uses a fusing belt [A]. The paper goes between the fusing belt and
the pressure roller [F].

Oil Supply

The oil supply unit contains a piece of felt. The felt absorbs the silicone oil in the
unit and supplies it to the oil supply roller.

Heating Roller Lamp

The center of the heating roller [B] contains a lamp (770 W) [C]. The thermostat [D]
and thermistor [E] control the temperature of the roller surface. The machine cuts
power to the lamp when it detects 220°C. The thermostat cutoff point is 200°C.

Pressure Roller Lamp

The center of the pressure roller [F] contains a lamp (350 W) [G]. The thermistor
[H] and thermofuse [I] control the temperature of the roller surface.
The temperature of the surface of the pressure roller reaches to 250 °C when the
pressure roller temperature rises gradually or it reaches 300 °C when it rises
rapidly. Normally, the machine cuts the lamp power when the thermistor detects
220 °C.

Pressure Roller Pawls

The pawls [J] above the pressure roller help prevent paper jams.
SM
CÓPIA NÃO CONTROLADA
FUSING UNIT AND OIL SUPPLY UNIT
[E]
[D]
[C]
[B]
6-45
CÓPIA NÃO CONTROLADA
[J]
[I]
[H]
[F]
[G]
G070D502.WMF
[A]
