6.7.4 STANDARD TRAY - PAPER SIZE DETECTION

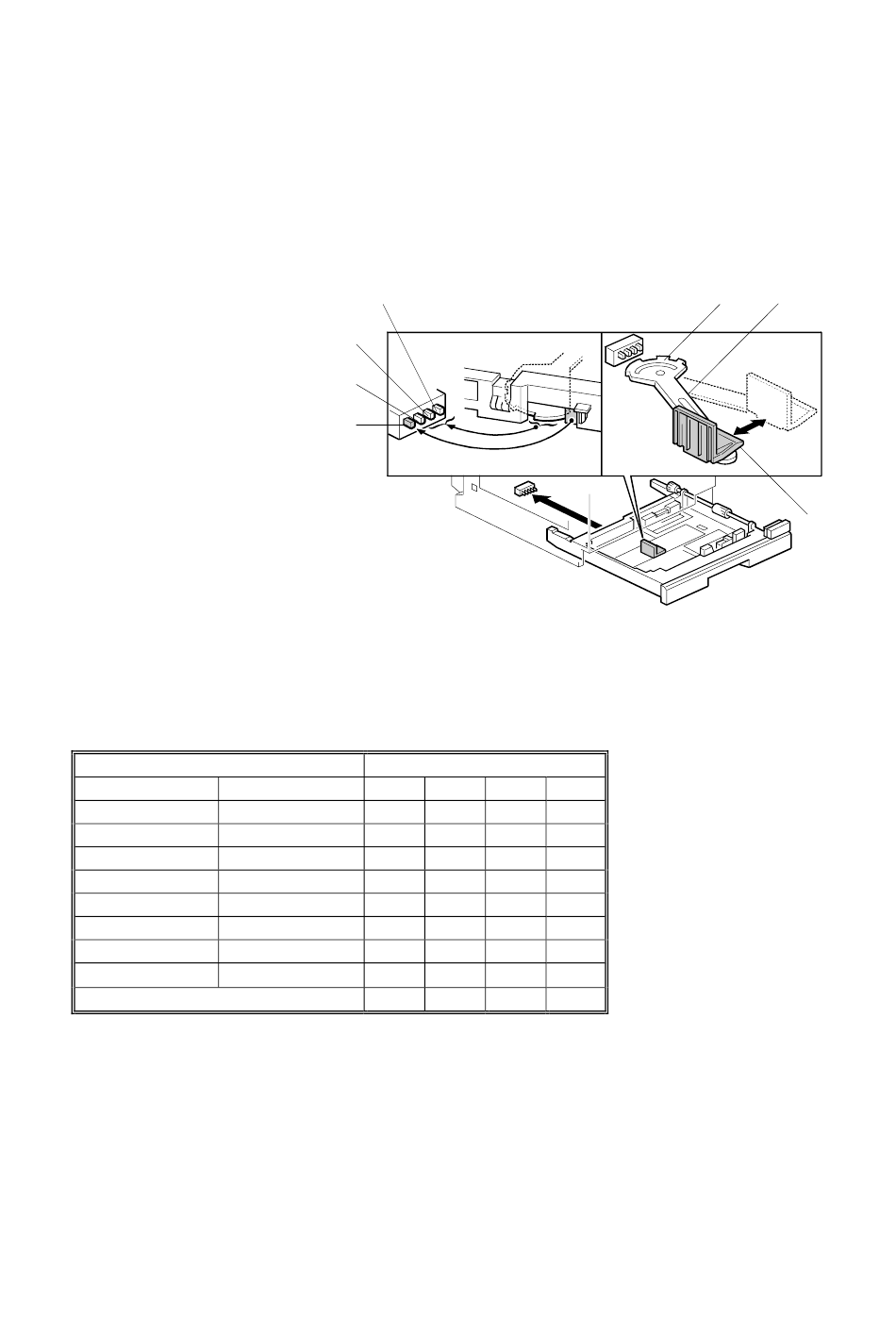

Mechanism
The end fence [G] moves the lever [F], which moves a different set of notches on
the actuator [E] into contact with the paper size switches [B]∼[D]. When you put the
tray in the main unit, the rear fence of the tray and the actuator activate the
switches; from this the machine detects the presence of the tray, and the paper
size.
[A]: Tray set switch
[B]: Paper size switch
[C]: Paper size switch
[D]: Paper size switch
[E]: Actuator
[F]: Lever
[G]: End fence
Switch Pattern
When the tray is pushed into the machine, the leftmost switch [A] is always
activated by the rear fence of the tray; this switch detects the presence of the tray.
The combination of the other 3 switches [B]∼[D] detects the paper size.
Paper Size
North America
3
DLT SEF*
2
LG SEF*
A4 SEF
LT SEF
5
B5 SEF*
4
LT LEF*
B5 LEF
(No tray)
1
*
On: Pushed Off: Not pushed
2
*
Selected with SP1-902-1 [PaperSize - B4/LG], (LG SEF/B4 SEF)
3
*
Selected with SP1-902-2 [PaperSize - A3/DLT], (DLT SEF/A3 SEF)
4
*
Selected with SP1-902-3 [PaperSize - A4/LT], (LT LEF/A4 LEF)
5
*
Selected with SP1-902-4 [PaperSize - B5/Executive], (B5 SEF/10.5" x 7.25" SEF)
NOTE: 1) For the input check table, ! 5.2.2.
2) Other paper sizes are not detected. Use the Paper Input – Tray Paper
Size user tool to set paper sizes.
G071
