3.4 DRIVE UNITS

3.4.1 DEVELOPMENT CLUTCHES

1. Controller box (! 3.3.2)

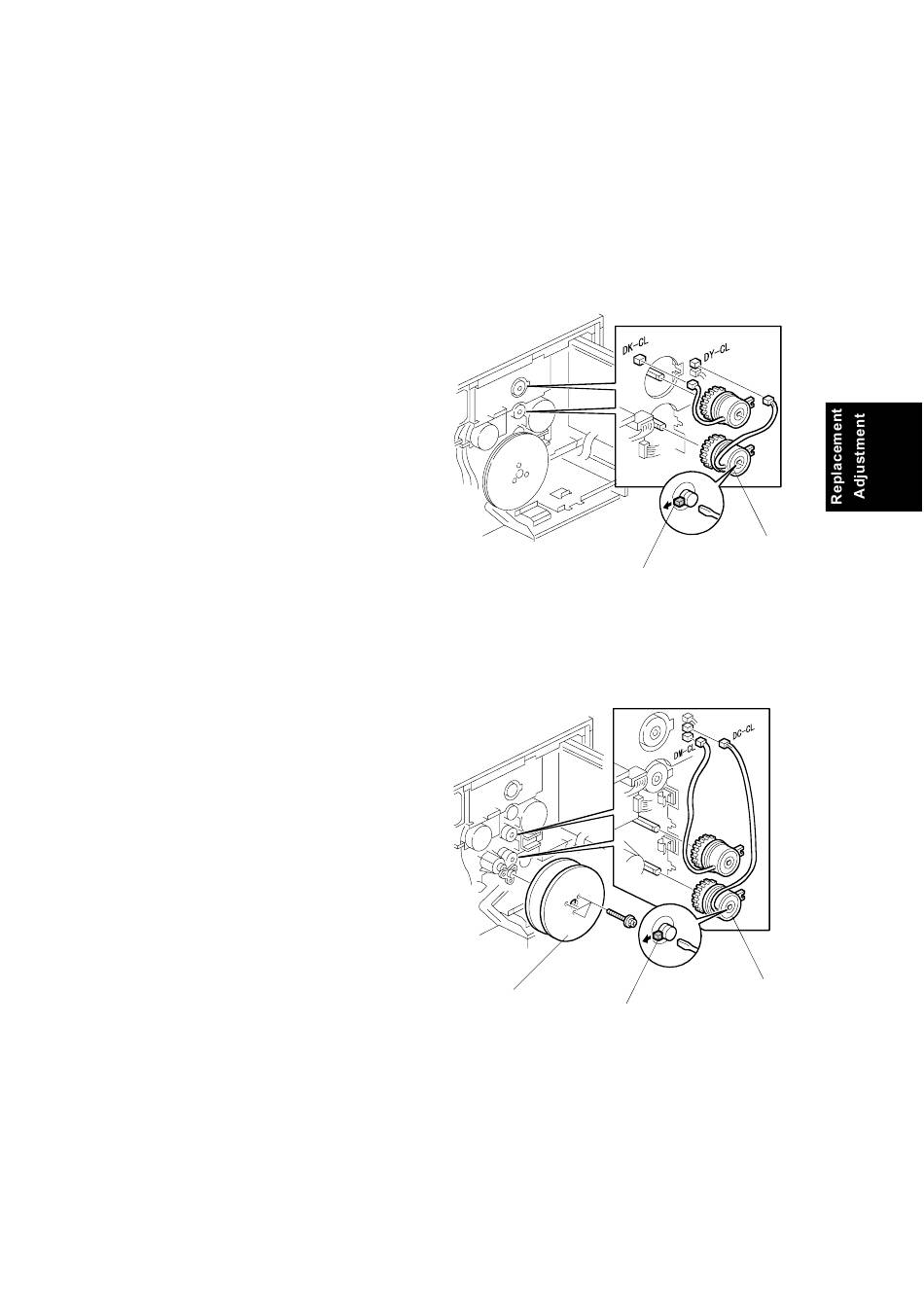

K/Y Development Units

1. Unhook the lock [A] and pull out
the clutch [B] ( x 1).

C/M Development Units

1. Flywheel [A] ( x 3)
2. Unhook the lock [B] and pull out
the clutch [C] ( x 1).
