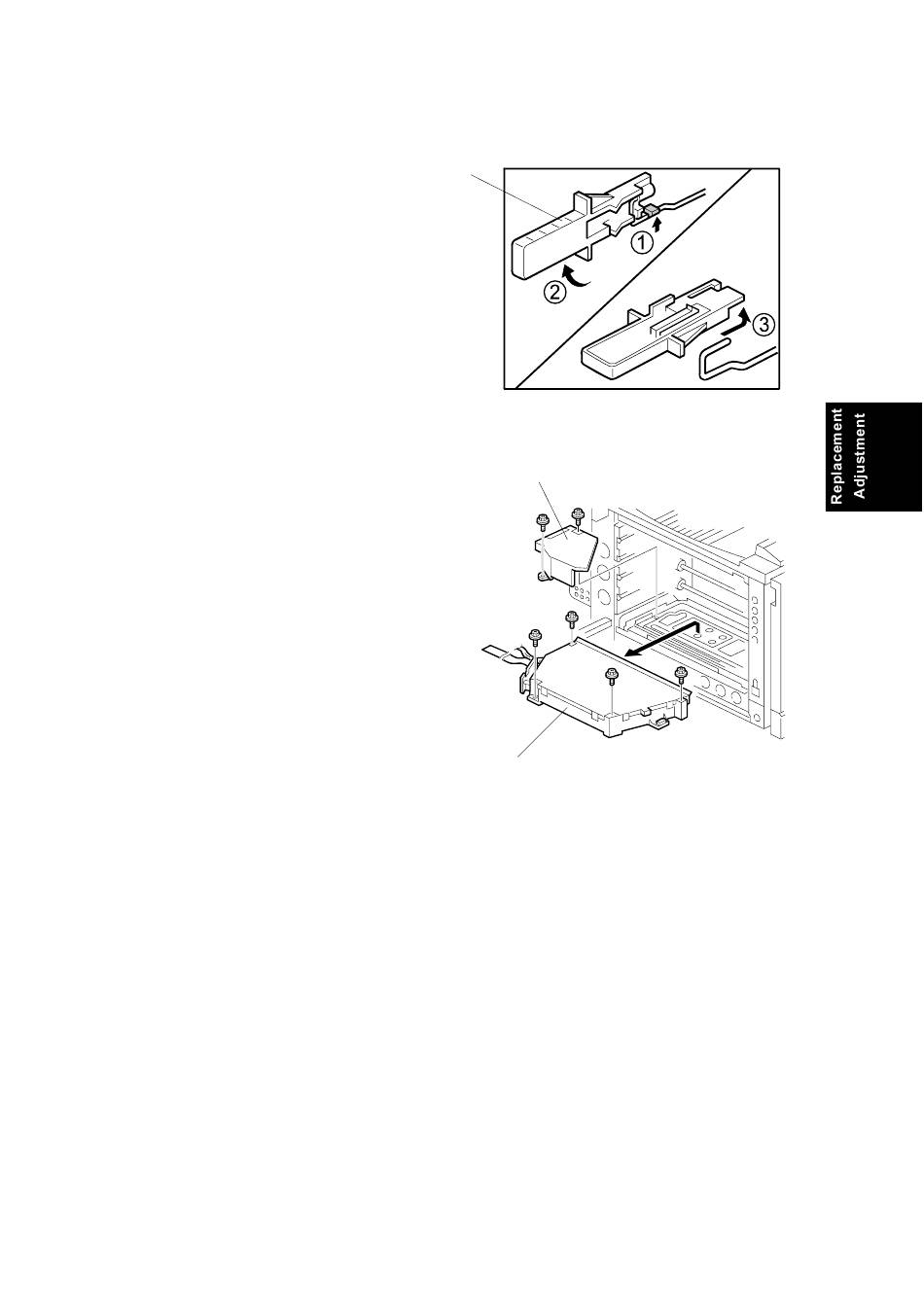

11. Open the front cover.
12. Remove the dust shield glass
cleaner lever [A] from the dust
shield glass cleaner.
NOTE: The dust shield glass
cleaner lever is the blue
lever at the right side of the
main switch.
13. LD cover [B] ( x 2)
14. Laser optics housing unit [C]
( x 4)
SM
CÓPIA NÃO CONTROLADA
[A]
[B]
[C]
3-13
CÓPIA NÃO CONTROLADA
LASER OPTICS SECTION
