Chapter 2: Jumpers and Connectors

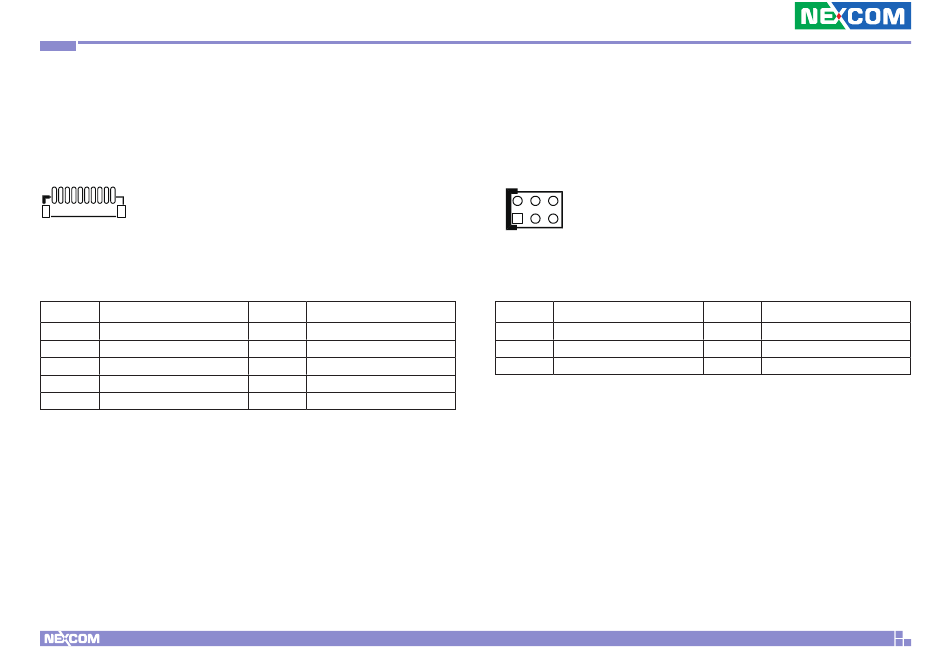

GPIO Connector

Connector WtoB Conn. 1x 10-pin header, 1.0mm pitch
Connector location: GPIO
1 10
Pin Definition
1 +5V
3 GPO0
5 GPO2
7 GPI0
9 GPI2
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 GPO1
6 GPO3
8 GPI1
10 GPI3

LVDS Inverter Connector

Connector type: 2x3, 6-pin header JST, 2.54mm pitch
Connector location: INV
2 5
1 6
Pin Definition
1 GND
3 +V_INV
5 INV_BKLTEN
16
Pin Definition
2 GND
4 +V_INV
6 INV_BKLTCTRL
