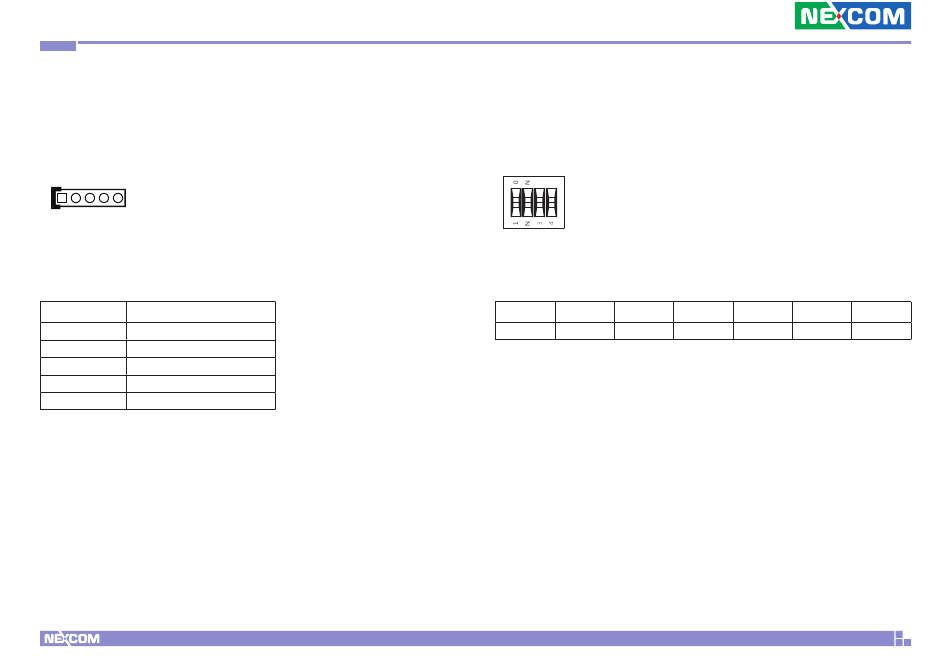

COM2 RI Select

Connector type: 1x5-pin header, 2.0mm pitch
Connector location: JP1
1 5
Pin Settings
1 RI (Default)
2 COM2_RI (Default)
3 +5V
4 COM2_RI
5 +12V
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.

eDP Panel Resolution Select

Connector type: 4-pin DIP switch
Connector location: SW1
SW [3:0] SW1 [3] SW1 [2] SW1 [1] SW1 [0]
1111 OFF OFF
Default: All OFF
12
HA HA
OFF OFF 1920 1080
