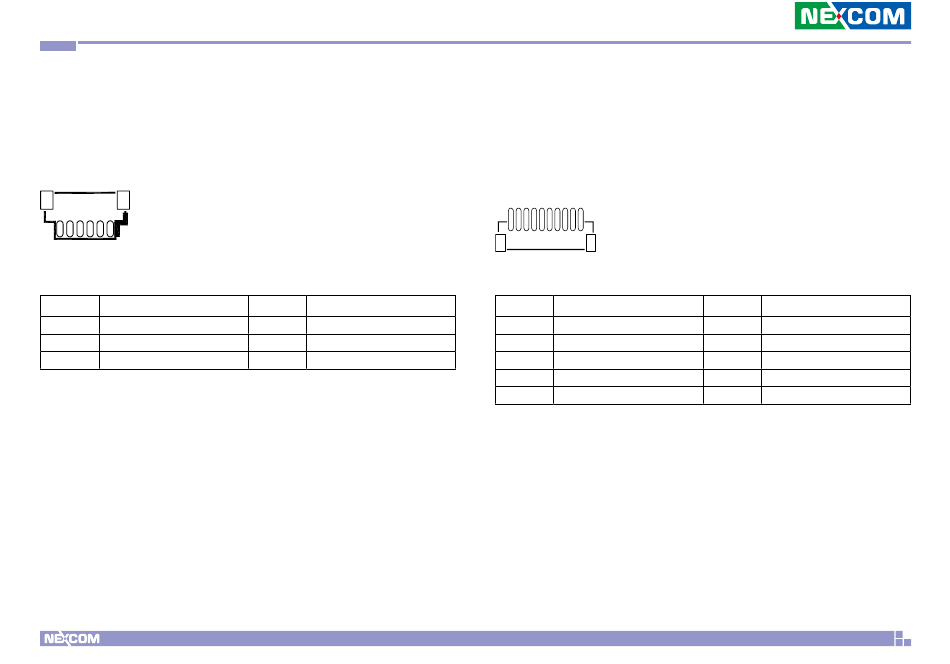

Chapter 2: Jumpers and Connectors
USB 2.0
Connector type: Internal dual USB 2.0 ports
Connector location: USB2_78P1 & USB2_910P1
6
1
Pin
Definition
1
GND
3
USB2P
5
USB1P
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
USB2N
4
USB1N
6
+5V
GPIO Connector
Connector location: GPIO1
1
10
Pin
Definition
1
+5V
3
12C_CLK
5
GPIO_PIN5
7
GPIO_PIN7
9
GPIO_PIN9
19
Pin
Definition
2
GND
4
I2C_DATA
6
GPIO_PIN6
8
GPIO_PIN8
10
GPIO_PIN10
XPPC 10-200 User Manual
