Chapter 2: Jumpers and Connectors

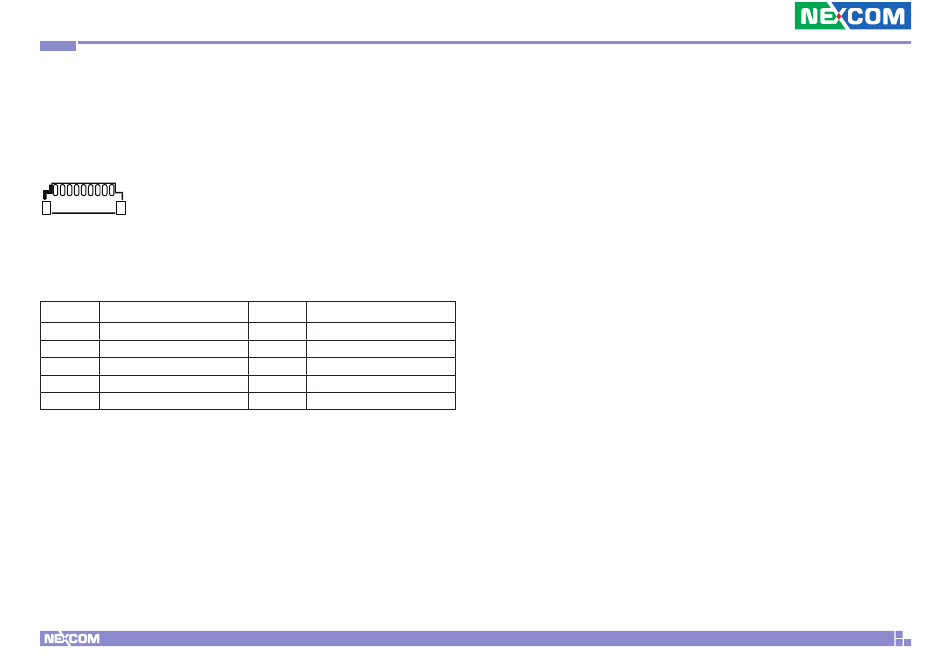

MIC-in & Line-Out Connector
Connector type: 1x 9-pin header, 1.0mm pitch
Connector location: MIC_LOUT
1
9
Pin
Definition
1
LINE_OUT-R
3
AUDGND
5
AUDGND
7
MIC_JD
9
AUDGND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
LINE_JD
4
LINE_OUT-L
6
MIC_OUT-R
8
MIC_OUT-L
20
Neu-X102 User Manual
