Chapter 2: Jumpers and Connectors

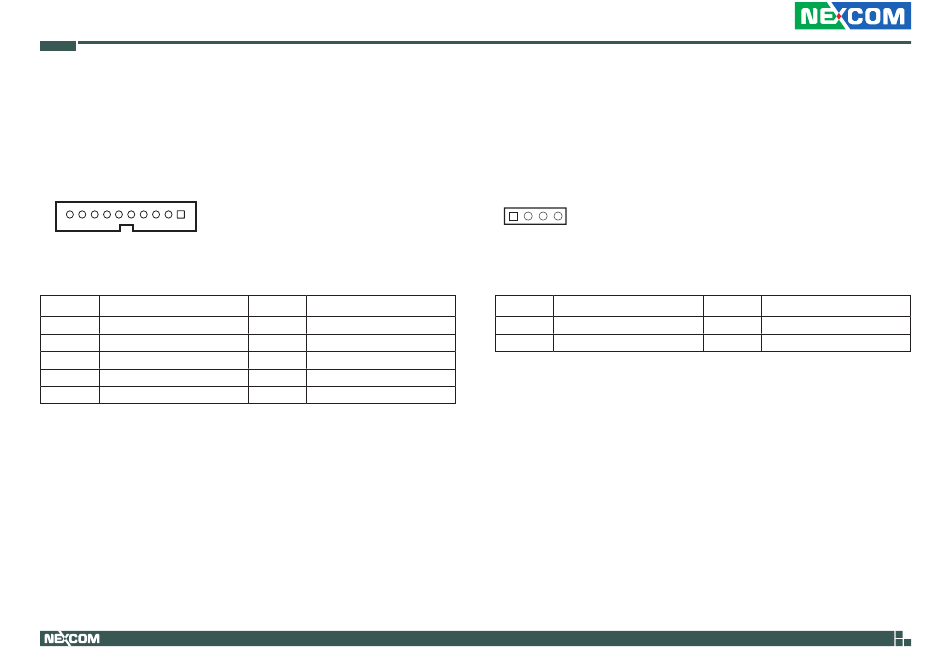

GPIO Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: GPIO1
10 1
10 1
Pin Definition
1 VCC5
3 ICH_GPO0_OUT
5 ICH_GPO1_OUT
7 ICH_GPO2_OUT
9 ICH_GPO3_OUT
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 ICH_GPI0_IN
6 ICH_GPI1_IN
8 ICH_GPI2_IN
10 ICH_GPI3_IN

Mic-in Pin Header

Connector type: 1x4 4-pin header, 2.0mm pitch
Connector location: MIC_IN1
1 4
Pin Definition
1 MIC1_L3
3 MIC_JD
22
Pin Definition
2 GND
4 MIC1_R3
