Chapter 3: System Setup

Installing an LTE Module

1. With the chassis cover removed, locate the mini-PCIe slot on the board.
2. Insert the LTE module into the slot at a 45 degree angle until the gold-
plated connector on the edge of the module completely disappears
inside the slot.
3. Tighten the screw (50311F0295X00) through the mounting hole on the
LTE module to the standoff on the motherboard.
4. Attach the RF cables to the LTE module and insert the antenna jacks
end of the cables through the antenna holes. Refer to
Antennas section for more details.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.

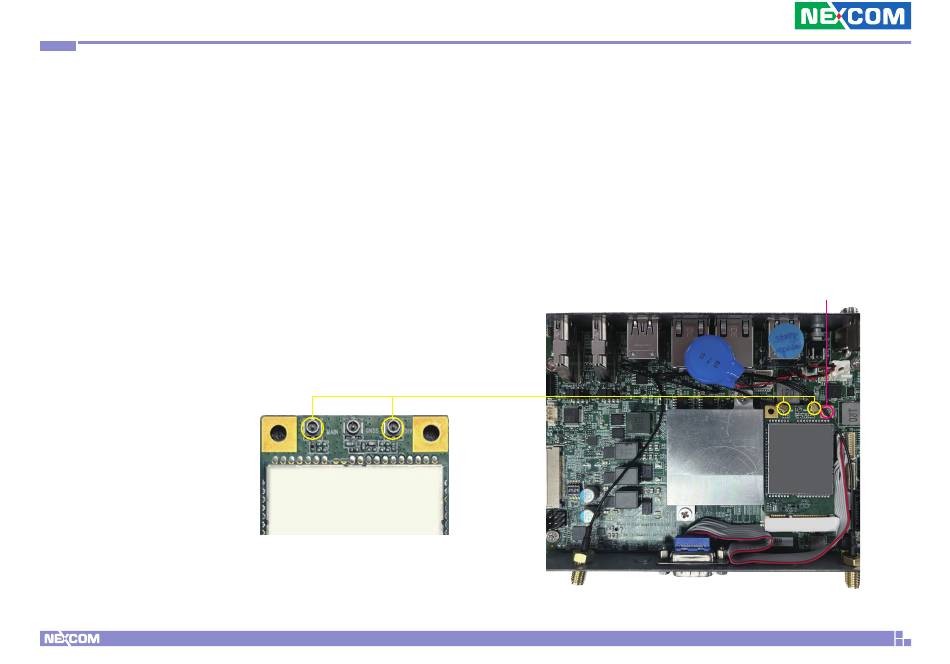

Assembling the
