Chapter 2: Jumpers and Connectors

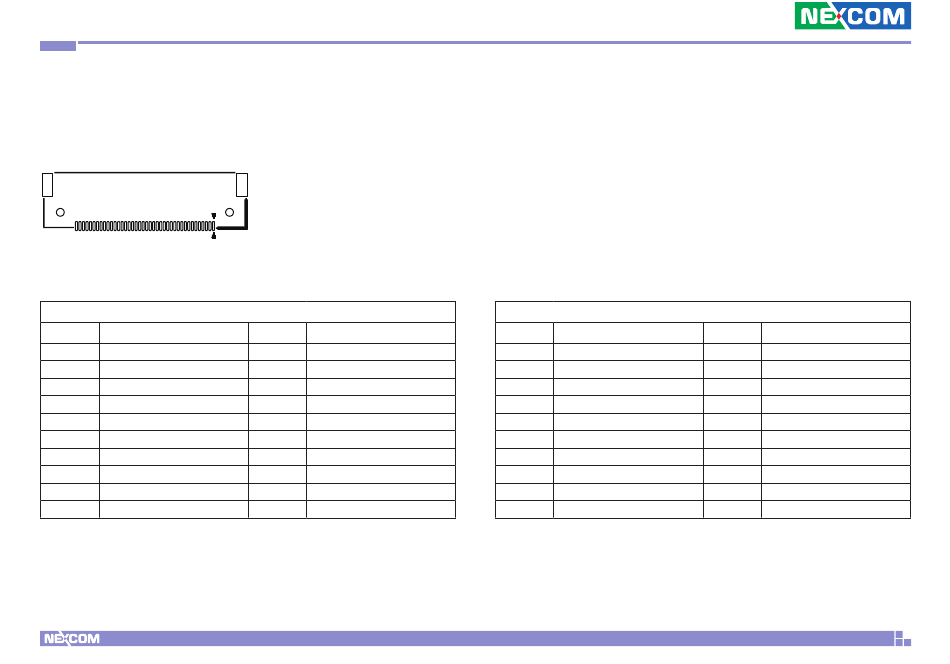

LVDS / eDP Panel Connector

Connector type: 1x 40-pin header, 0.5mm pitch
Connector location: LVDS_EDP
40 1
LVDS Definition
Pin Definition
1 LVDS_DAT3P
3 LVDS_DAT2P
5 LVDS_DAT1P
7 LVDS_DAT0P
9 LVDS_DAT7P
11 LVDS_DAT6P
13 LVDS_DAT5P
15 LVDS_DAT4P
17 GND
19 +V_PANEL
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 LVDS_DAT3N
4 LVDS_DAT2N
6 LVDS_DAT1N
8 LVDS_DAT0N
10 LVDS_DAT7N
12 LVDS_DAT6N
14 LVDS_DAT5N
16 LVDS_DAT4N
18 +V_PANEL
20 +V_PANEL
Pin Definition
21 GND
23 GND
25 GND
27 LVDS_CLK1N
29 GND
31 Hot-Plug Detect
33 INV_BKLTCTRL
35 LVDS_CLK2N
37 +V_INV
39 +V_INV
17
LVDS Definition
Pin Definition
22 +V_PANEL
24 GND
26 LVDS_CLK1P
28 GND
30 GND
32 INV_BKLTEN
34 LVDS_CLK2P
36 +V_INV
38 +V_INV
40 N.C.
