Chapter 2: Jumpers and Connectors

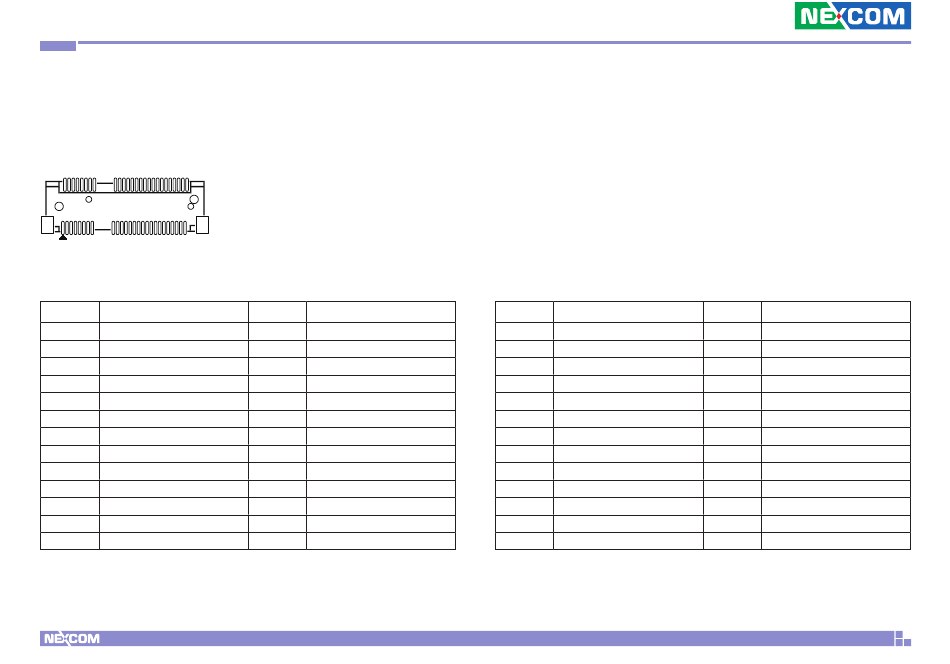

Mini-PCIe Connector

Connector location: MINIPCIE
2 52
1 51
Pin Definition
1 WAKE#
3 NC
5 NC
7 CLKREQ#
9 GND
11 CLKN0
13 CLKP0
15 GND
17 NC
19 NC
21 GND
23 PCIE5_RXN / SATA_RXP
25 PCIE5_RXP / SATA_RXN
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 3.3V
4 GND
6 1.5V
8 UIM_PWR
10 UIM_DATA
12 UIM_CLK
14 UIM_RESET
16 UIM_VPP
18 GND
20 W_DIS#
22 RESET#
24 3.3V
26 GND
Pin Definition
27 GND
29 GND
31 PCIE5_TXN / SATA_TXN
33 PCIE5_TXP / SATA_TXP
35 GND
37 GND
39 3.3V
41 3.3V
43 GND
45 NC
47 NC
49 NC
51 mSATA Presece Detection
21
Pin Definition
28 1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB2_6DN
38 USB2_6DP
40 GND
42 NC
44 NC
46 NC
48 1.5V
50 GND
52 3.3V
