Chapter 2: Jumpers and Connectors

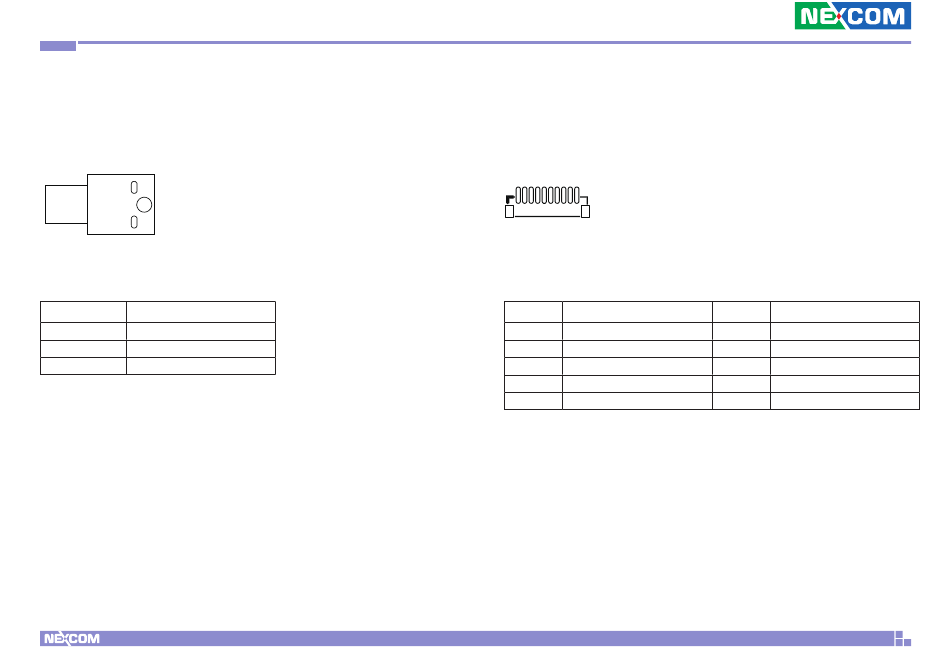

DC Power Input Jack

Connector type: DC Power Input Jack (+12V)
Connector location: DCIN1
3
2
1
Pin Definition
1 +12V
2 GND
3 GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.

Debug Port Connector

Connector type: 1x 10-pin header, 1.0mm pitch
Connector location: DEBUG
1 10
Pin Definition
1 GND
3 ESPI_CLK
5 ESPI_IO3
7 ESPI_IO1
9 ESPI_RST#
15
Pin Definition
2 PLTRST#
4 ESPI_CS#
6 ESPI_IO2
8 ESPI_IO0
10 3.3V
