Chapter 2: Jumpers and Connectors

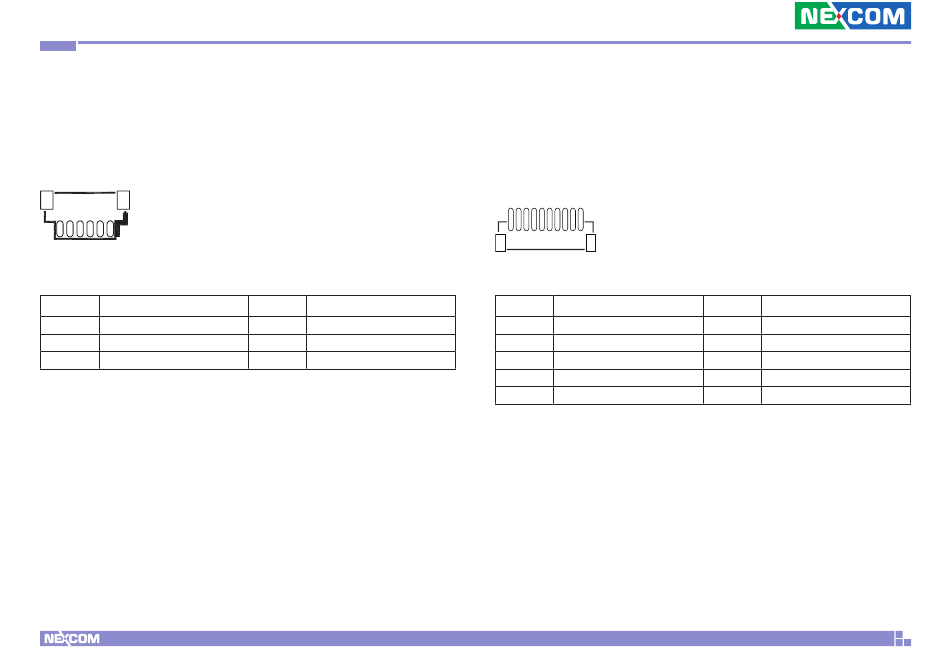

USB 2.0

Connector type: Internal dual USB 2.0 ports
Connector location: USB2_78P1 & USB2_910P1
6 1
Pin Definition
1 GND
3 USB2P
5 USB1P
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB2N
4 USB1N
6 +5V

GPIO Connector

Connector location: GPIO1
1 10
Pin Definition
1 +5V
3 12C_CLK
5 GPIO_PIN5
7 GPIO_PIN7
9 GPIO_PIN9
20
Pin Definition
2 GND
4 I2C_DATA
6 GPIO_PIN6
8 GPIO_PIN8
10 GPIO_PIN10
