Chapter 2: Jumpers and Connectors

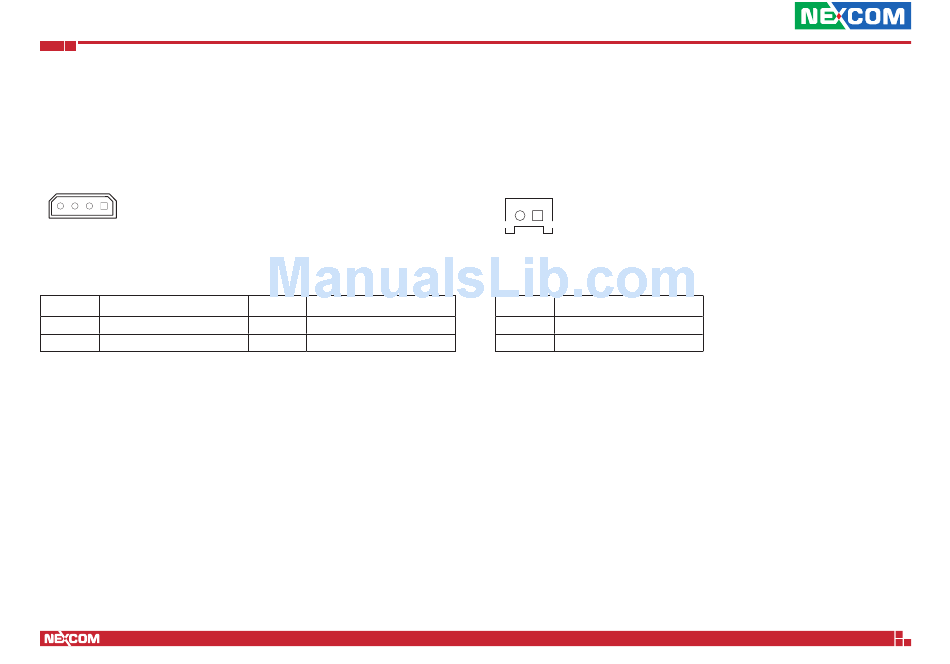

SATA HDD Power Connector

Connector type: 1x4 4-pin header
Connector location: J7
4 1
Pin Definition
1 P12V
3 GND
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 P5V

SATA DOM Power Connector

Connector type: 1x2 JST, 2-pin header
Connector location: J11
2 1
Pin Definition
1 P5V
2 GND
